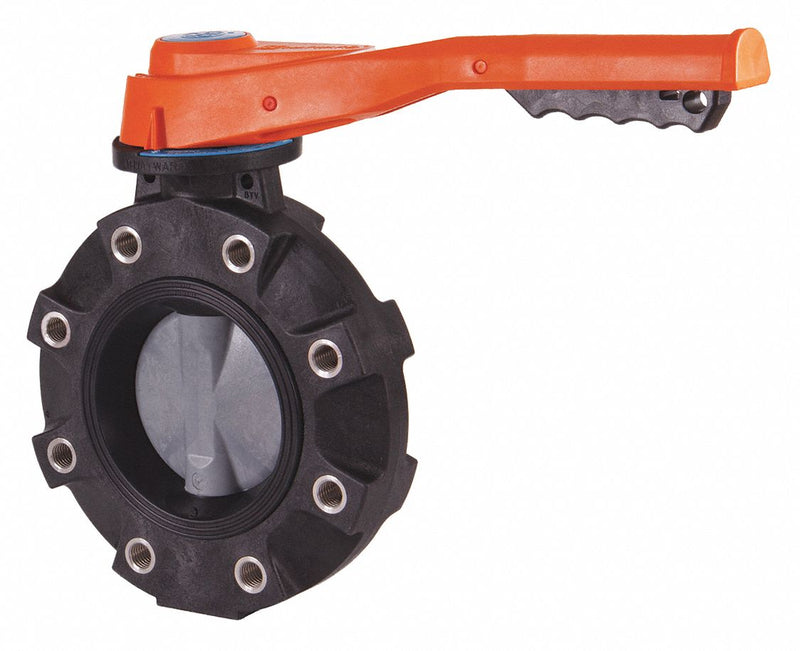

Innovative hand lever design for this HAYWARD butterfly valve features a 72 spline interlock mechanism that allows for 19 stopping positions every 5. Model comes with a hydro-dynamic disc for Increased flow performance and an over-sized liner face that maximizes flange surface contact. Valve has a 1-pc stem with threaded retaining gland for positive stem retention, plus high visibility disc position and flow rate indication. The hand lever construction for this BYV series valve has a UV inhibitor for improved performance in outdoor applications.
| Item | Butterfly Valve |
| Style | Lug |
| Body Material | PVC |
| Max. Water Pressure | 150 psi |
| Pipe Size | 6 in |
| Temp. Range | 32 Degrees to 140 Degrees F |
| Liner Material | EPDM |
| Disc Material | PVC |
| Handle Type | Lever |
| Number of Bolt Holes | 8 |
| Bolt Circle Dia. | 9 1/2 in |
| Lug Dia. | 7/8 in |
| Standards | ISO 5211 |
| Compliance | ASTM D1784 Cell Class 12454 |
