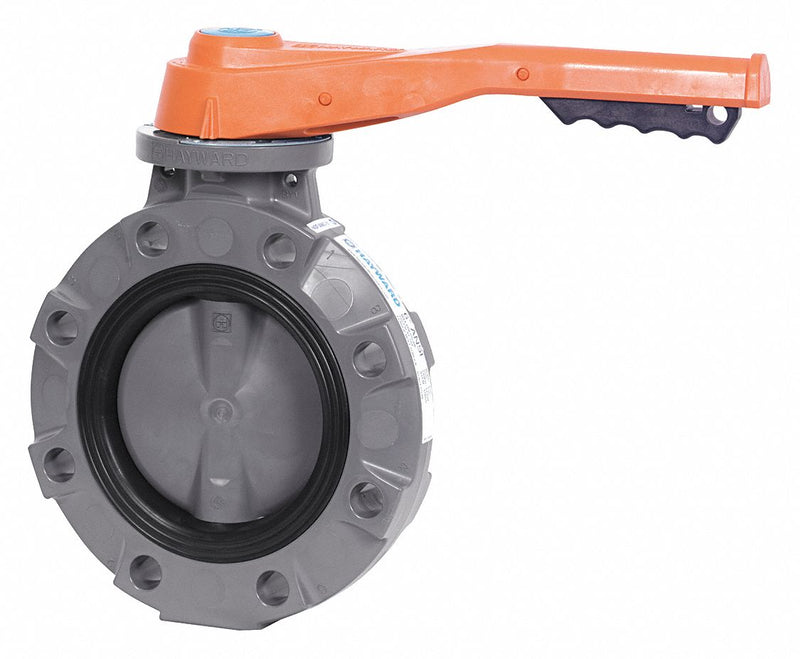

Hayward Wafer-Style Butterfly Valve, PVC, 150 psi, 8 in Pipe Size - BYV11080A0VL000

HaywardSKU: C2783504
MPN : BYV11080A0VL000
Weight : 11.0 lb
filler

Price:
$2,402.70 $2,930.12

Availability : Usually Ships Within 5-7 Business Days

Innovative hand lever design for this HAYWARD butterfly valve features a 72 spline interlock mechanism that allows for 19 stopping positions every 5. Model comes with a hydro-dynamic disc for Increased flow performance and an over-sized liner face that maximizes flange surface contact. Valve has a 1-pc stem with threaded retaining gland for positive stem retention, plus high visibility disc position and flow rate indication. The hand lever construction for this BYV series valve has a UV inhibitor for improved performance in outdoor applications.

ItemButterfly Valve
StyleWafer
Body MaterialPVC
Max. Water Pressure150 psi
Pipe Size8 in
Temp. Range32 Degrees to 140 Degrees F
Liner MaterialFPM
Disc MaterialPVC
Handle TypeLever
Number of Bolt Holes8
Bolt Circle Dia.11 3/4 in
Lug Dia.7/8 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 12454
