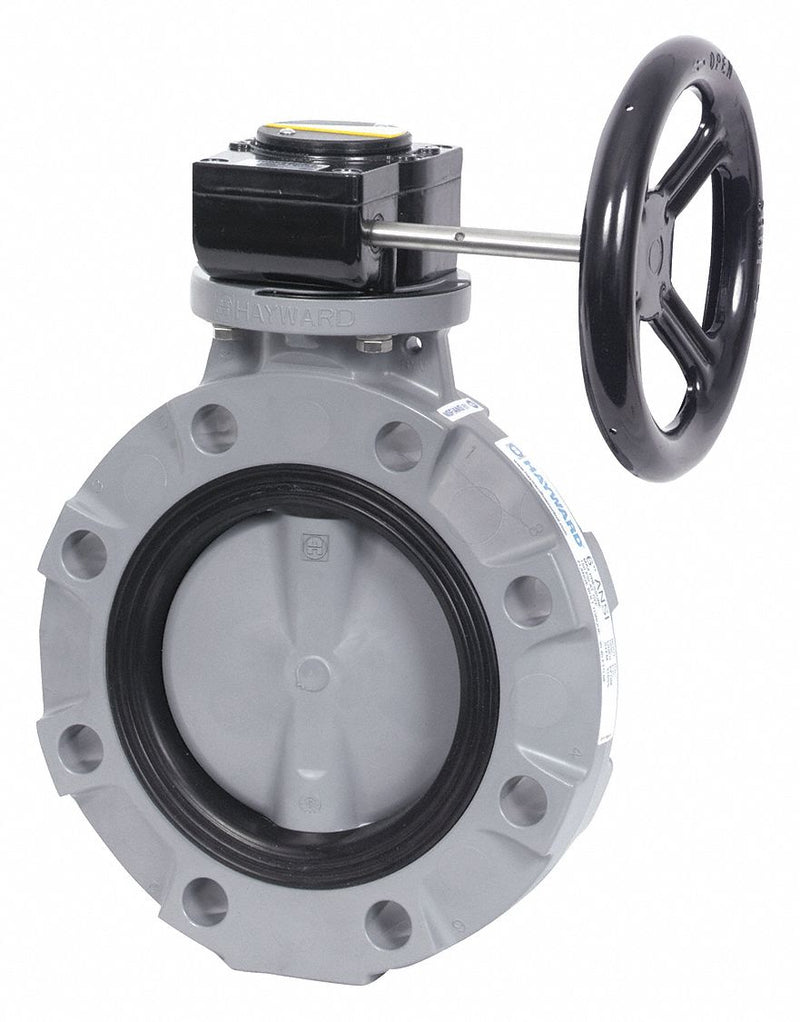

Hayward Wafer-Style Butterfly Valve, PVC, 150 psi, 2 in Pipe Size - BYV14020A0VG000

HaywardSKU: C2783542
MPN : BYV14020A0VG000
Weight : 8.0 lb
filler

Price:
$1,351.00 $1,647.56

Availability : Usually Ships Within 5-7 Business Days

With rugged thermoplastic body construction thats lighter in weight than comparable metal valves, this HAYWARD butterfly valve comes with a hydro-dynamic disc for Increased flow performance and high Cv. Disc helps minimize turbulence due to reduction of flow and it allows for maximum flow through the valve port.,Suitable for use in chemical processing/handling, corrosive, marine, and water/wastewater treatment applications.

ItemButterfly Valve
StyleWafer
Body MaterialPVC
Max. Water Pressure150 psi
Pipe Size2 in
Temp. Range32 Degrees to 140 Degrees F
Liner MaterialFPM
Disc MaterialGlass Filled Polypropylene
Handle TypeGear
Number of Bolt Holes4
Bolt Circle Dia.4 3/4 in
Lug Dia.3/4 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 12454 (Body) ASTM D4101 Cell Class 85580
