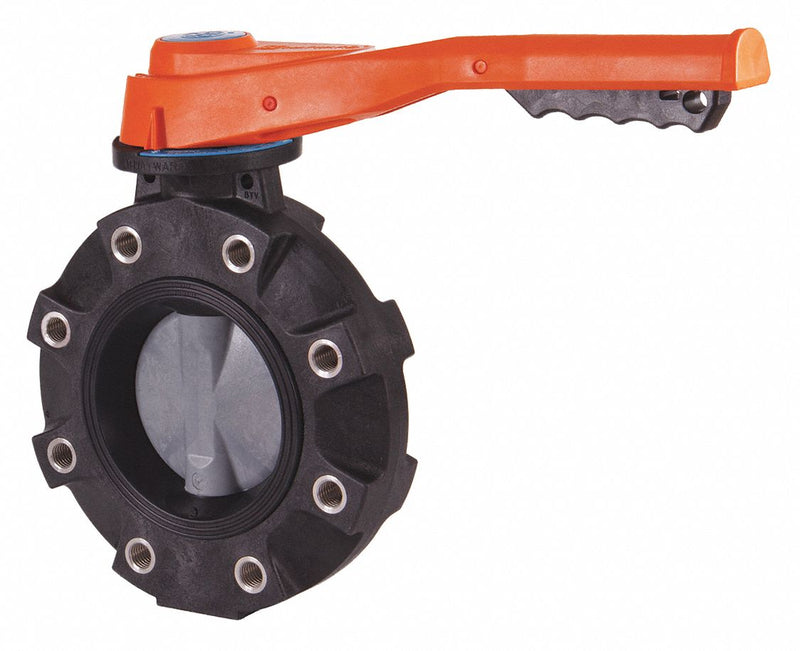

Hayward Lug-Style Butterfly Valve, PVC, 150 psi, 4 in Pipe Size - BYV14040A0NLI00

HaywardSKU: C2783518
MPN : BYV14040A0NLI00
Weight : 11.0 lb

filler

Price:
$1,004.49 $1,620.15

Availability : Usually Ships in 10 Business Days

Innovative hand lever design for this HAYWARD butterfly valve features a 72 spline interlock mechanism that allows for 19 stopping positions every 5. Model comes with a hydro-dynamic disc for Increased flow performance and an over-sized liner face that maximizes flange surface contact. Valve has a 1-pc stem with threaded retaining gland for positive stem retention, plus high visibility disc position and flow rate indication. The hand lever construction for this BYV series valve has a UV inhibitor for improved performance in outdoor applications.

ItemButterfly Valve
StyleLug
Body MaterialPVC
Max. Water Pressure150 psi
Pipe Size4 in
Temp. Range32 Degrees to 140 Degrees F
Liner MaterialNitrile
Disc MaterialGlass Filled Polypropylene
Handle TypeLever
Number of Bolt Holes8
Bolt Circle Dia.7 1/2 in
Lug Dia.22/31 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 12454 (Body) ASTM D4101 Cell Class 85580
