Availability : Usually Ships in 10-12 Business Days

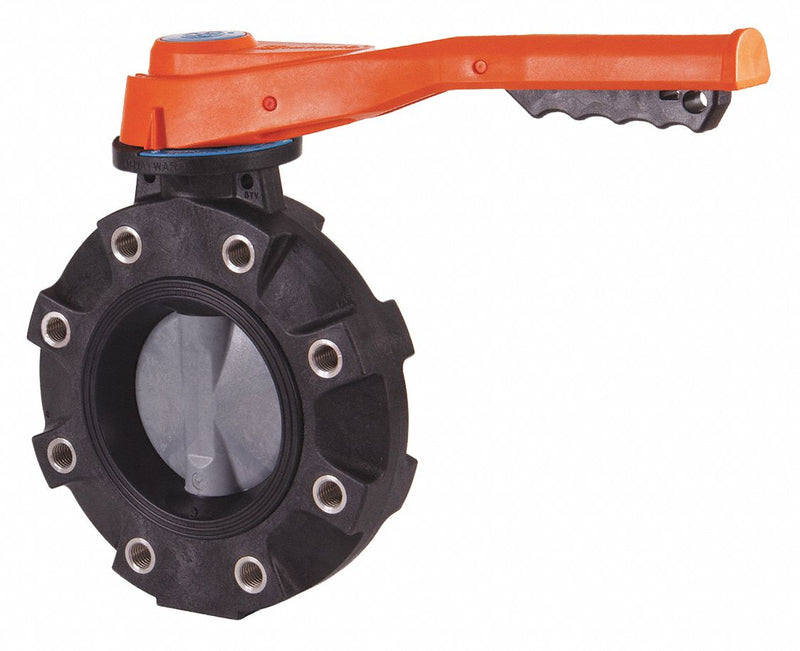

Innovative hand lever design for this HAYWARD butterfly valve features a 72 spline interlock mechanism that allows for 19 stopping positions every 5. Model comes with a hydro-dynamic disc for Increased flow performance and an over-sized liner face that maximizes flange surface contact. Valve has a 1-pc stem with threaded retaining gland for positive stem retention, plus high visibility disc position and flow rate indication. The hand lever construction for this BYV series valve has a UV inhibitor for improved performance in outdoor applications.
|Max. Water Pressure||150 psi|
|Pipe Size||4 in|
|Temp. Range||32 Degrees to 140 Degrees F|
|Disc Material||Glass Filled Polypropylene|
|Number of Bolt Holes||8|
|Bolt Circle Dia.||7 1/2 in|
|Lug Dia.||22/31 in|
|Compliance||ASTM D1784 Cell Class 12454 (Body) ASTM D4101 Cell Class 85580|
