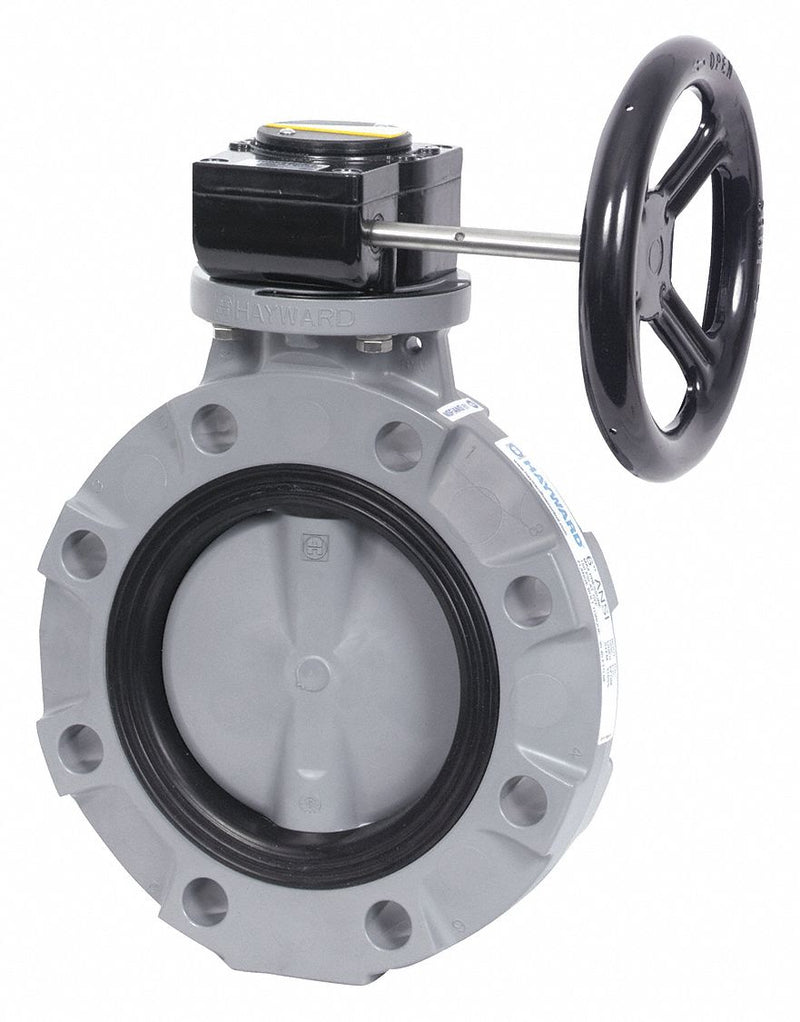

Hayward BYV14100A0EG000 - Butterfly Valve PVC/PP EPDM 10in Gear

HaywardSKU: C2888463
MPN : BYV14100A0EG000
Weight : 36.0 lb

filler

Price:
$2,449.86 $3,951.39

Availability : Usually Ships in 3-5 Business Days
ItemButterfly Valve
StyleWafer
Body MaterialPVC
Max. Water Pressure150 psi
Pipe Size10 in
Temp. Range32 Degrees to 140 Degrees F
Liner MaterialEPDM
Disc MaterialGlass Filled Polypropylene
Handle TypeGear
Number of Bolt Holes12
Bolt Circle Dia.14 1/4 in
Lug Dia.1 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 12454 (Body) ASTM D4101 Cell Class 85580
