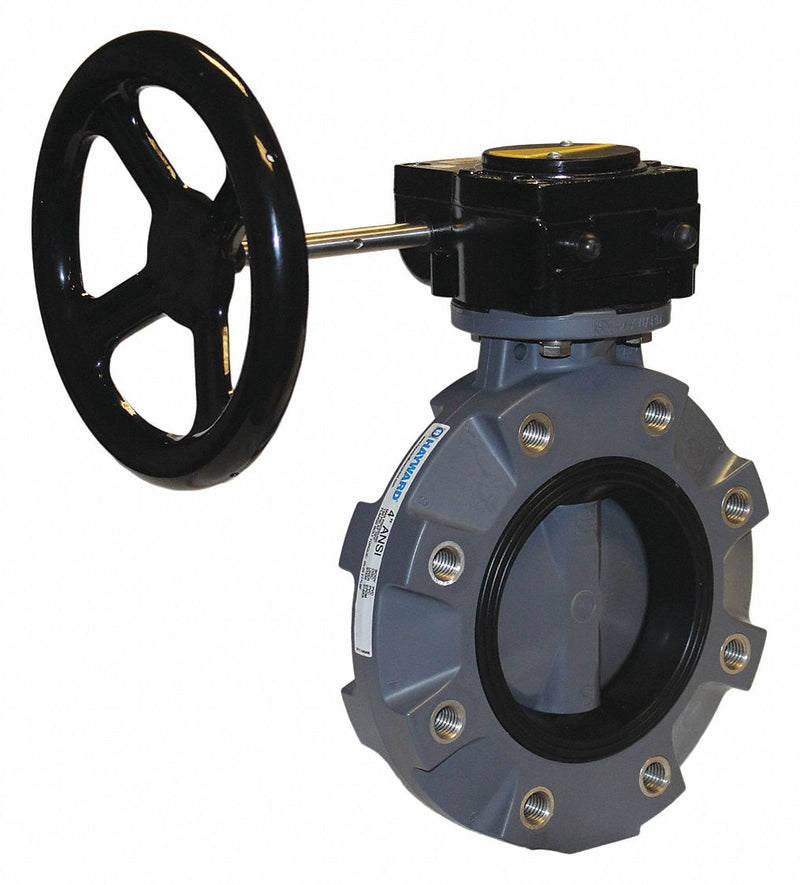

Hayward Lug-Style Butterfly Valve, CPVC, 150 psi, 3 in Pipe Size - BYV22030A0EGI00

HaywardSKU: C2783514
MPN : BYV22030A0EGI00
Weight : 10.0 lb
filler

Price:
$1,879.08 $2,291.56

Availability : Usually Ships in 10-12 Business Days

With rugged thermoplastic body construction thats lighter in weight than comparable metal valves, this HAYWARD butterfly valve comes with a hydro-dynamic disc for Increased flow performance and high Cv. Disc helps minimize turbulence due to reduction of flow and it allows for maximum flow through the valve port.,Suitable for use in chemical processing/handling, corrosive, marine, and water/wastewater treatment applications.

ItemButterfly Valve
StyleLug
Body MaterialCPVC
Max. Water Pressure150 psi
Pipe Size3 in
Temp. Range32 Degrees to 190 Degrees F
Liner MaterialEPDM
Disc MaterialCPVC
Handle TypeGear
Number of Bolt Holes4
Bolt Circle Dia.6 in
Lug Dia.3/4 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 23447
