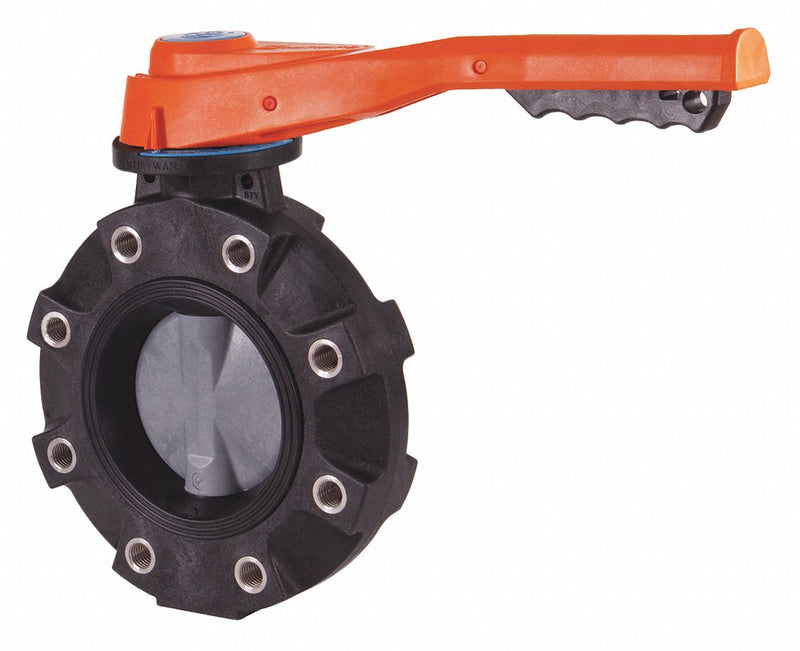

Hayward Lug-Style Butterfly Valve, CPVC, 150 psi, 8 in Pipe Size - BYV22080A0ELI00

HaywardSKU: C2783468
MPN : BYV22080A0ELI00
Weight : 22.0 lb
filler

Price:
$3,291.80 $4,014.39

Availability : Usually Ships in 10-12 Business Days

Innovative hand lever design for this HAYWARD butterfly valve features a 72 spline interlock mechanism that allows for 19 stopping positions every 5. Model comes with a hydro-dynamic disc for Increased flow performance and an over-sized liner face that maximizes flange surface contact. Valve has a 1-pc stem with threaded retaining gland for positive stem retention, plus high visibility disc position and flow rate indication. The hand lever construction for this BYV series valve has a UV inhibitor for improved performance in outdoor applications.

ItemButterfly Valve
StyleLug
Body MaterialCPVC
Max. Water Pressure150 psi
Pipe Size8 in
Temp. Range32 Degrees to 190 Degrees F
Liner MaterialEPDM
Disc MaterialCPVC
Handle TypeLever
Number of Bolt Holes8
Bolt Circle Dia.11 3/4 in
Lug Dia.7/8 in
StandardsISO 5211
ComplianceASTM D1784 Cell Class 23447
