Availability : Usually Ships in 10-12 Business Days

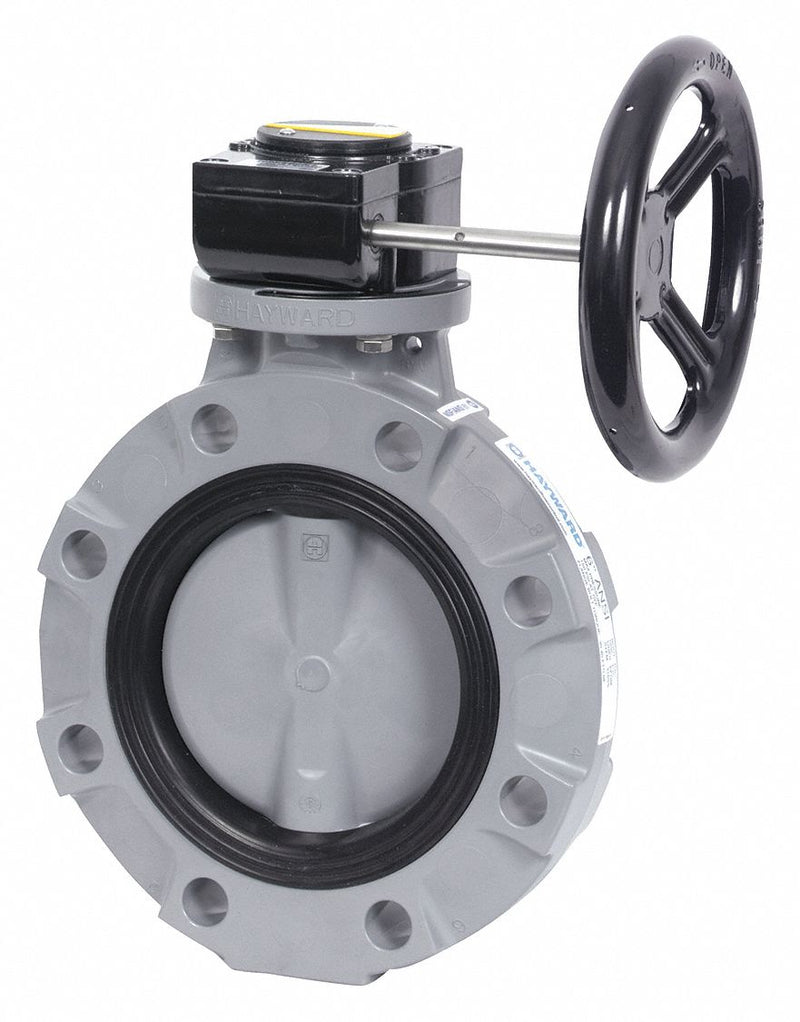

With rugged thermoplastic body construction thats lighter in weight than comparable metal valves, this HAYWARD butterfly valve comes with a hydro-dynamic disc for Increased flow performance and high Cv. Disc helps minimize turbulence due to reduction of flow and it allows for maximum flow through the valve port.,Suitable for use in chemical processing/handling, corrosive, marine, and water/wastewater treatment applications.
|Max. Water Pressure||150 psi|
|Pipe Size||8 in|
|Temp. Range||32 Degrees to 190 Degrees F|
|Number of Bolt Holes||8|
|Bolt Circle Dia.||11 3/4 in|
|Lug Dia.||7/8 in|
|Compliance||ASTM D1784 Cell Class 23447|
