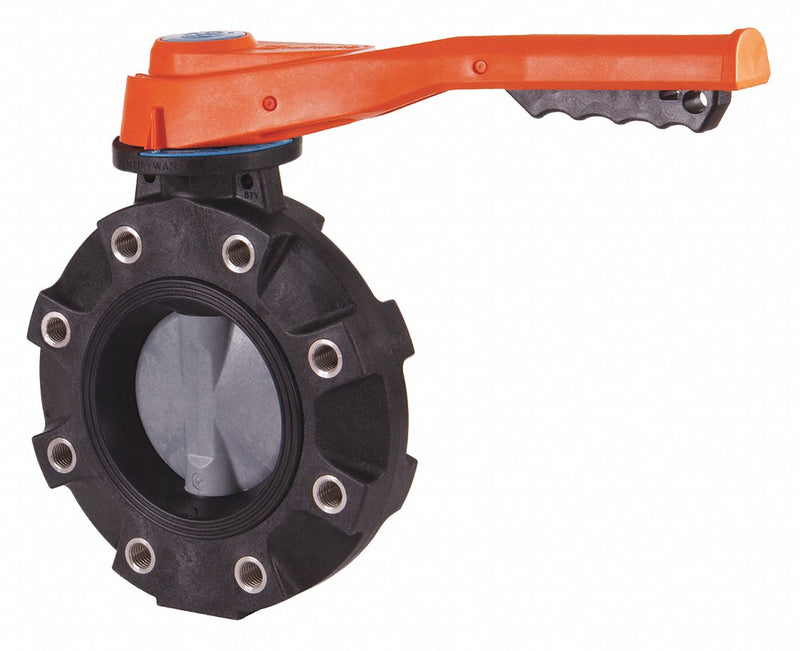

Hayward Lug-Style Butterfly Valve, Polypropylene, 150 psi, 2 in Pipe Size - BYV44020A0ELI00

HaywardSKU: C2783561
MPN : BYV44020A0ELI00
Weight : 7.0 lb


$1,068.61 $1,303.18

Availability : Usually Ships in 7-10 Business Days

Features a 1-pc. body and 1-pc. 316 SS stem with threaded retaining gland. 316 SS lugs are molded into the body for added strength. Valve has 19 lockable stop positions, 360 Interlock, and Cv and percentage open indicators.

ItemButterfly Valve
Body MaterialPolypropylene
Max. Water Pressure150 psi
Pipe Size2 in
Temp. Range32 Degrees to 250 Degrees F
Liner MaterialEPDM
Disc MaterialGlass Filled Polypropylene
Handle TypeLever
Number of Bolt Holes4
Bolt Circle Dia.4 3/4 in
Lug Dia.3/4 in
StandardsISO 5211
ComplianceASTM D4101 Cell Class 85580
