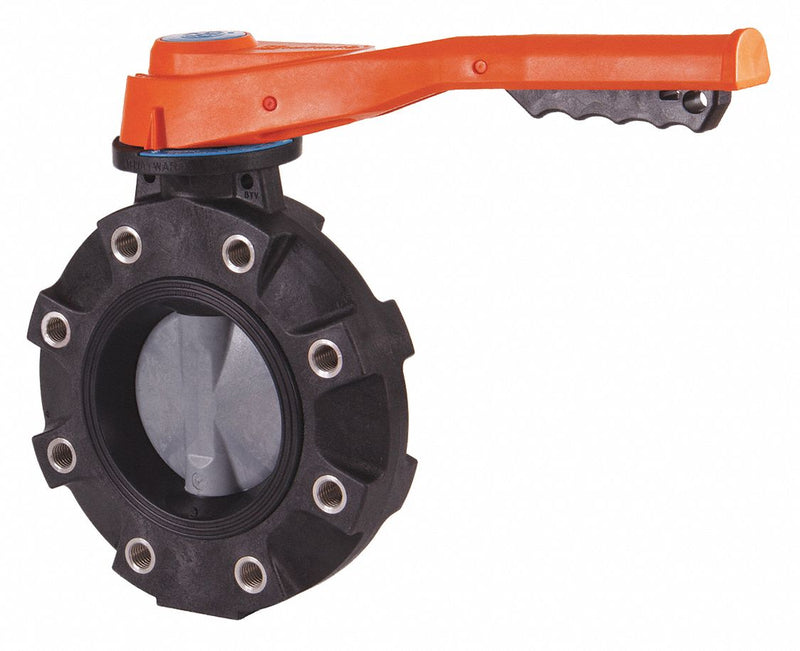

Hayward Lug-Style Butterfly Valve, Polypropylene, 150 psi, 2 1/2 in Pipe Size - BYV44025A0VLI00

HaywardSKU: C2783501
MPN : BYV44025A0VLI00
Weight : 7.0 lb

filler

Price:
$1,907.47 $2,326.18

Availability : Usually Ships in 10-12 Business Days

Features a 1-pc. body and 1-pc. 316 SS stem with threaded retaining gland. 316 SS lugs are molded into the body for added strength. Valve has 19 lockable stop positions, 360 Interlock, and Cv and percentage open indicators.

ItemButterfly Valve
StyleLug
Body MaterialPolypropylene
Max. Water Pressure150 psi
Pipe Size2 1/2 in
Temp. Range32 Degrees to 250 Degrees F
Liner MaterialFPM
Disc MaterialGlass Filled Polypropylene
Handle TypeLever
Number of Bolt Holes4
Bolt Circle Dia.5 1/2 in
Lug Dia.3/4 in
StandardsISO 5211
ComplianceASTM D4101 Cell Class 85580
