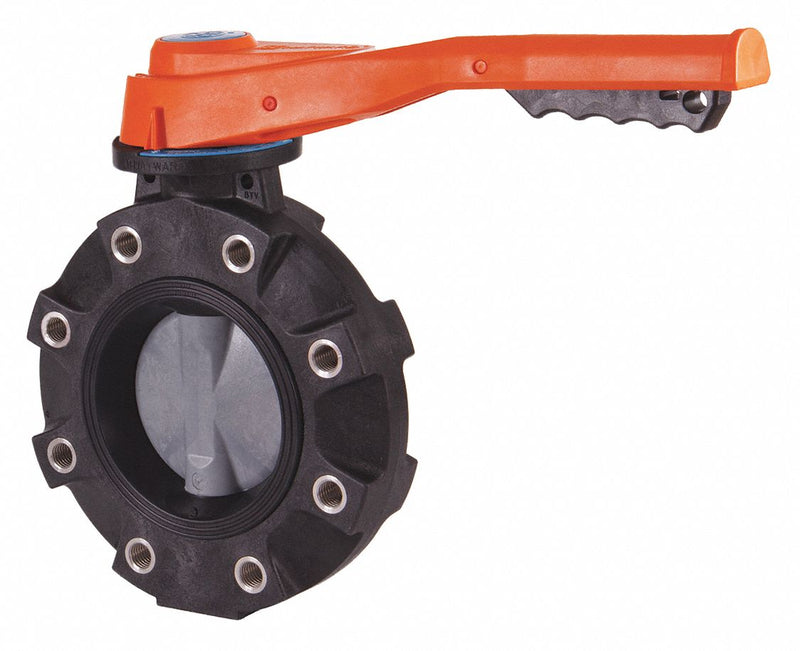

Features a 1-pc. body and 1-pc. 316 SS stem with threaded retaining gland. 316 SS lugs are molded into the body for added strength. Valve has 19 lockable stop positions, 360 Interlock, and Cv and percentage open indicators.
| Item | Butterfly Valve |
| Style | Lug |
| Body Material | Polypropylene |
| Max. Water Pressure | 150 psi |
| Pipe Size | 4 in |
| Temp. Range | 32 Degrees to 250 Degrees F |
| Liner Material | EPDM |
| Disc Material | Glass Filled Polypropylene |
| Handle Type | Lever |
| Number of Bolt Holes | 8 |
| Bolt Circle Dia. | 7 1/2 in |
| Lug Dia. | 22/31 in |
| Standards | ISO 5211 |
| Compliance | ASTM D4101 Cell Class 85580 |
