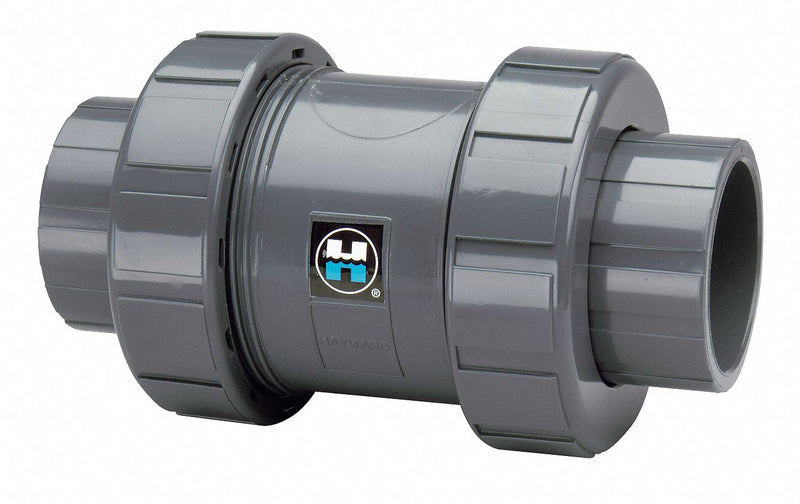

Hayward Check Valve, 1 1/4 in, Single, Inline True Union, CPVC, FNPT x Socket - TC20125STE

HaywardSKU: C1910785
MPN : TC20125STE
Weight : 2.5 lb
filler

Price:
$177.78 $216.80

Availability : Usually Ships in 1-3 Business Days

Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline True Union
Body Material - ValvesCPVC
Pipe or Tube Size - Check Valves1 1/4 in
Connection Type - Check ValvesFNPT x Socket
Cracking Pressure - Check Valves3 psi
Mounting Orientation - Check ValvesVertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves190 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves235 psi @ 70 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesEPDM
Flow - Valves30 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose, Pumps
Length6 9/32 in
Width4 in
Overall Height4 in
StandardsNSF 61
