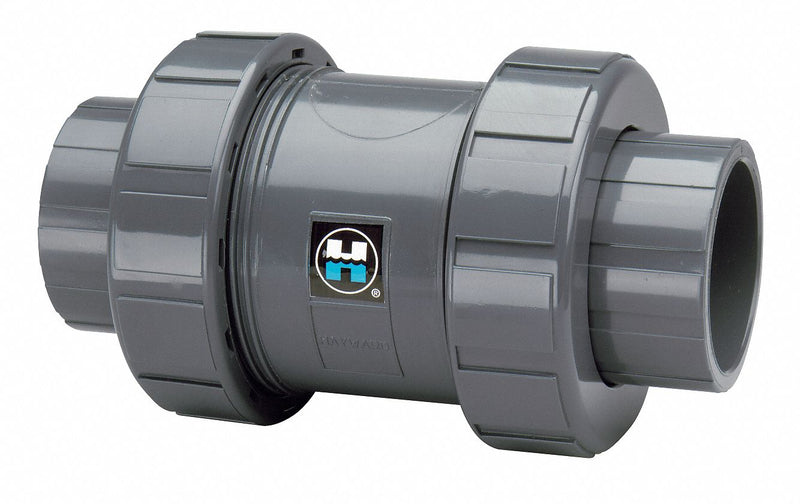

Hayward Check Valve, 1 in, Single, Inline True Union, CPVC, Flange x Flange - TC20100F

HaywardSKU: C1949962
MPN : TC20100F
Weight : 2.2 lb
filler

Price:
$212.14 $258.71

Availability : Usually Ships in 3-5 Business Days

Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline True Union
Body Material - ValvesCPVC
Pipe or Tube Size - Check Valves1 in
Connection Type - Check ValvesFlange x Flange
Cracking Pressure - Check Valves3 psi
Mounting Orientation - Check ValvesVertical
Seal Material - Check ValvesViton
Max. Temp. - Valves190 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves235 psi @ 70 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesViton
Flow - Valves18 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose, Pumps
Length7 3/4 in
Width4 1/2 in
Overall Height4 1/2 in
StandardsNSF 61
