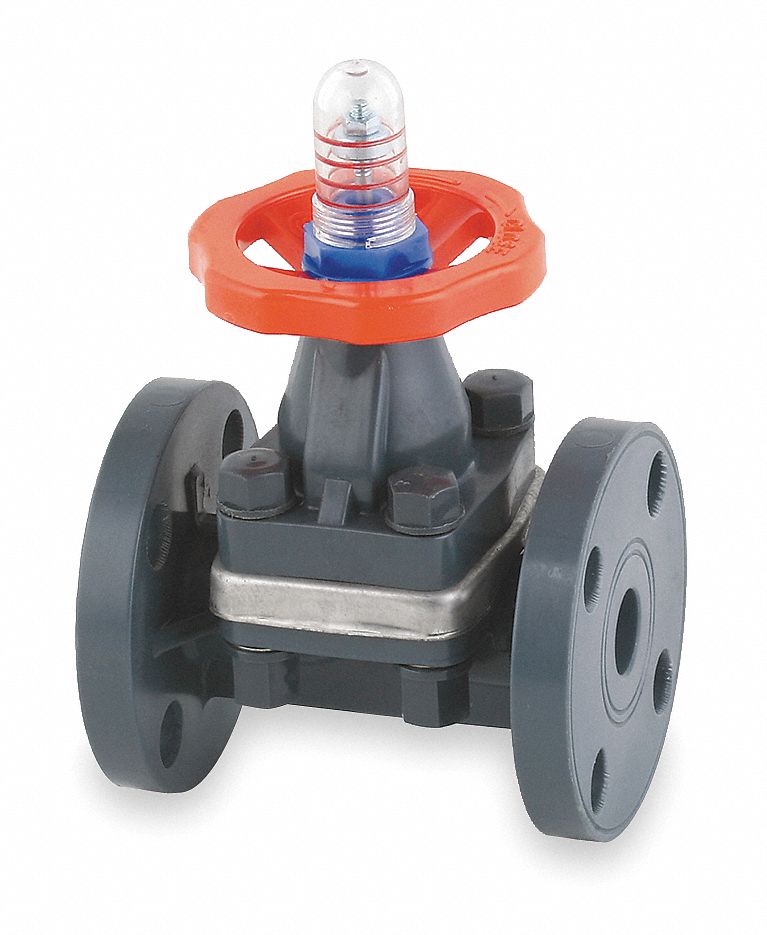

Diaphragm ValvesDAB Series, Max. pressure: 150 psi Temp. range: 40 to 140F,Handle corrosive slurries and abrasives in high-purity/sanitary applications. Stroke adjustment allows precise flow control. Clear beacon-type position indicator. Use for manual On/Off operation or throttling.
| Item | Diaphragm Valve |
| Valve Design | 2-Way |
| Pipe Size | 1 in |
| Connection | Flanged |
| Coefficient of Volume | 13 |
| Length | 5 1/8 in |
| Max. Pressure | 150 psi |
| Ambient Temp. Range | 0 Degrees to 140 Degrees F |
| Fluid Temp. Range | 40 Degrees to 140 Degrees F |
| Diaphragm Material | EPDM |
| Body Material | PVC |
| Seal Material | EPDM |
