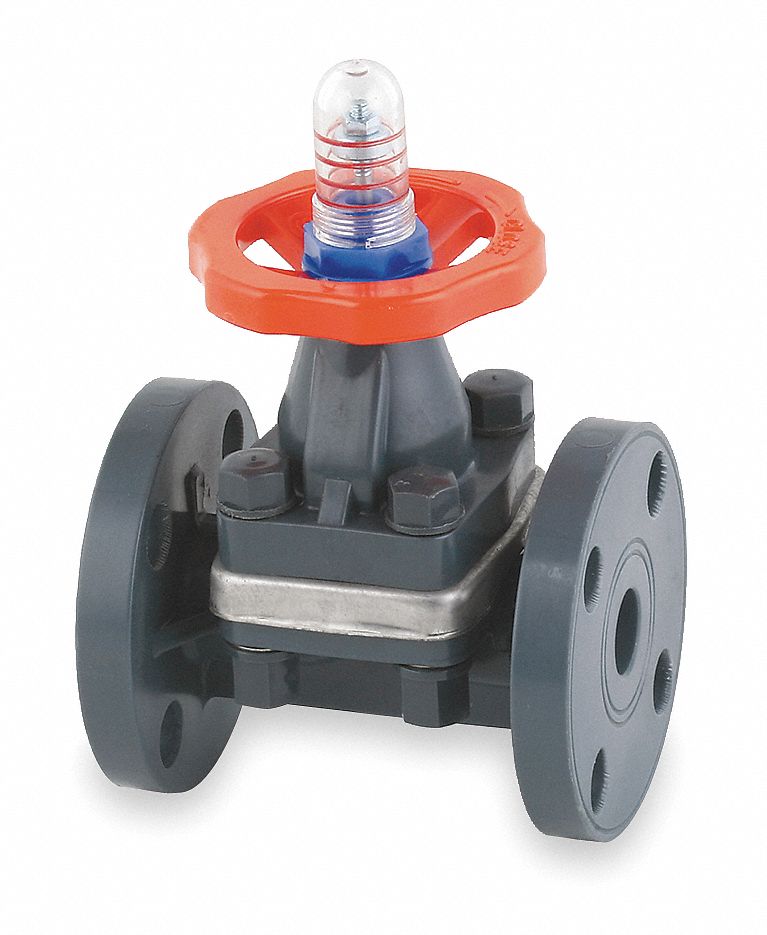

Hayward 12 51/64 in FNPT x Socket 2-Way Diaphragm Valve, 48 Coefficient of Volume, FPM - DAB1020UFF

HaywardSKU: C1950094
MPN : DAB1020UFF
Weight : 9.2 lb
filler

Price:
$756.65 $922.74

Availability : Usually Ships in 5-7 Business Days

Diaphragm ValvesDAB Series, Max. pressure: 150 psi Temp. range: 40 to 140F,Handle corrosive slurries and abrasives in high-purity/sanitary applications. Stroke adjustment allows precise flow control. Clear beacon-type position indicator. Use for manual On/Off operation or throttling.

ItemDiaphragm Valve
Valve Design2-Way
Pipe Size2 in
ConnectionFNPT x Socket
Coefficient of Volume48
Length12 51/64 in
Max. Pressure150 psi
Ambient Temp. Range0 Degrees to 140 Degrees F
Fluid Temp. Range40 Degrees to 140 Degrees F
Diaphragm MaterialFPM
Body MaterialPVC
Seal MaterialFPM
