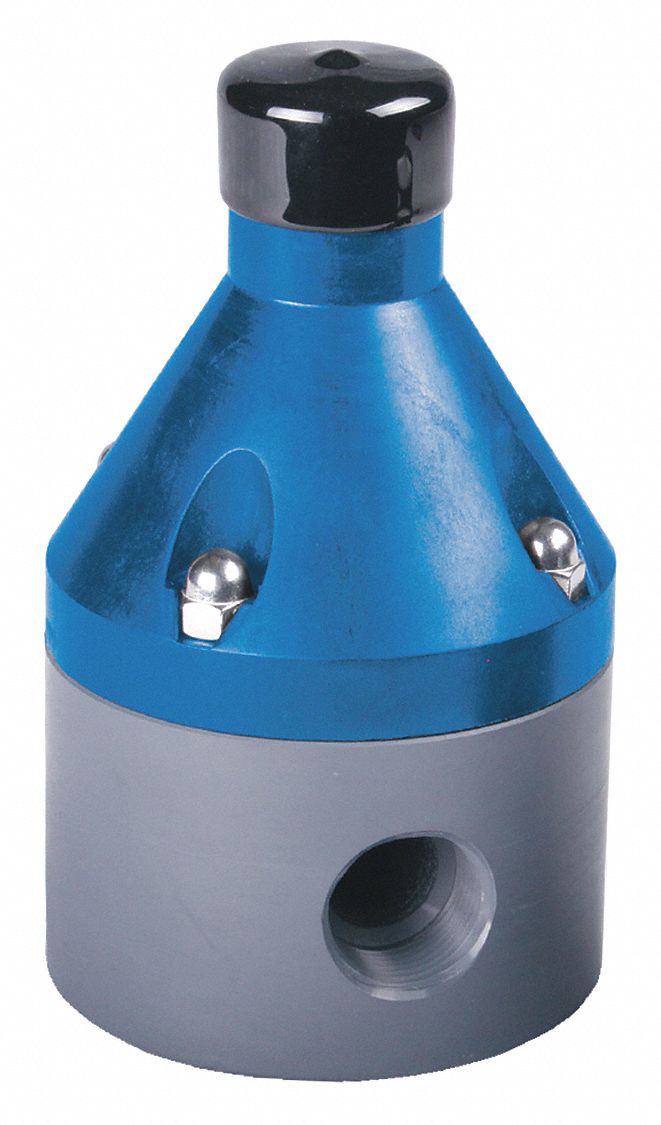

Hayward Threaded Pressure Reducing Pressure Reducing Control Valve, 1/4 in Pipe Size - PBV3025TPE1

HaywardSKU: C2783674
MPN : PBV3025TPE1
Weight : 0.8 lb
filler

Price:
$241.54 $294.56

Availability : Usually Ships in 3-5 Business Days

Ideal for chemical feed systems, this HAYWARD pressure reducing control valve can apply back pressure to a metering pump to help prevent siphoning and eliminate variable dosage rates due to a fluctuating downstream pressure. When the valves preset pressure is exceeded (model has an adjustment screw that you can adjust in the field), the diaphragm moves up and chemical flows through the valve to the injection point.

ItemPressure Reducing Control Valve
Valve TypePressure Reducing
Pipe Size1/4 in
Connection TypeThreaded
Operating Pressure150 psi
Max. Continuous Flow Rate5.7 gpm
Max. Intermittent Flow Rate1.8 gpm
Port Size1/4 in x 1/4 in
Max. Fluid Temp.180 Degrees F
Body MaterialPolypropylene
Cover MaterialNoryl(TM)
Elastomer MaterialEPDM
Nut MaterialStainless Steel
Spring MaterialZinc Plated
