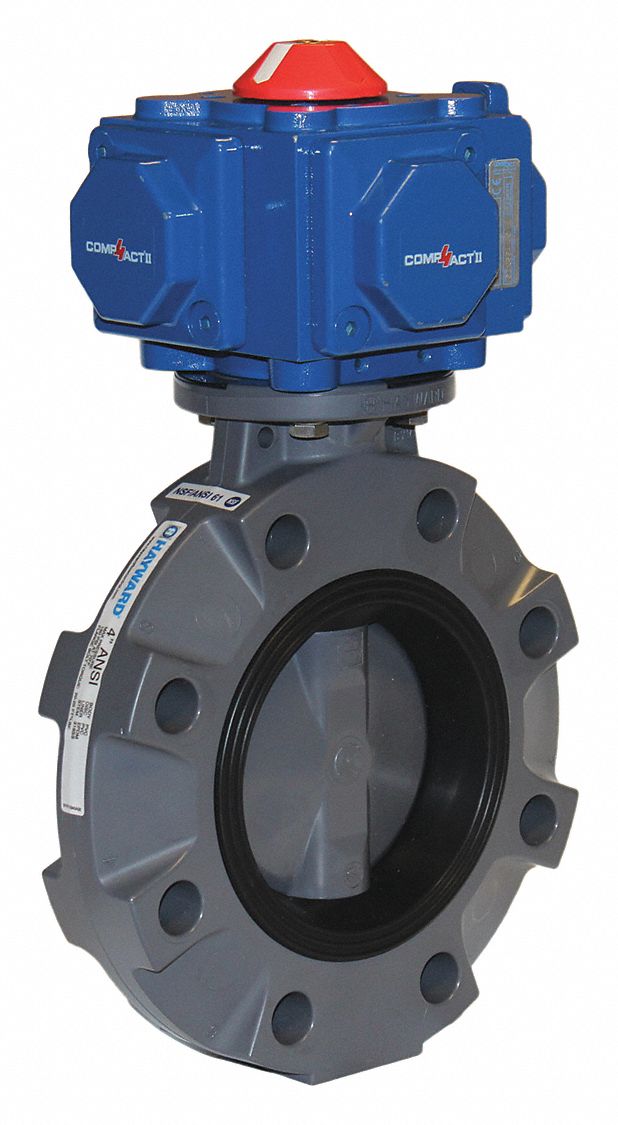

Rugged 1-pc. body with hydro-dynamic centric disc design for increased flow performance. Features 1-pc. 316 SS stem with threaded retaining gland and the over-sized liner face maximizes surface contact with flanges. A solenoid valve is required to control compressed air. This valve is ideal for use in water and wastewater treatment plants, chemical processing and handling, and in marine and corrosive environments.
| Item | Butterfly Valve |
| Action | Spring Return |
| Body Material | PVC |
| Pipe Size | 4 in |
| Connection | ANSI |
| Max. Water Pressure | 150 psi |
| Air Inlet Pressure | 80 psi |
| Number of Bolt Holes | 8 |
| Bolt Circle Dia. | 7 1/2 in |
| Lug Dia. | 3/4 in |
| Seat Material | EPDM |
| Standards | ISO 5211 |
| Compliance | ASTM D1784 Cell Class 12454 |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
