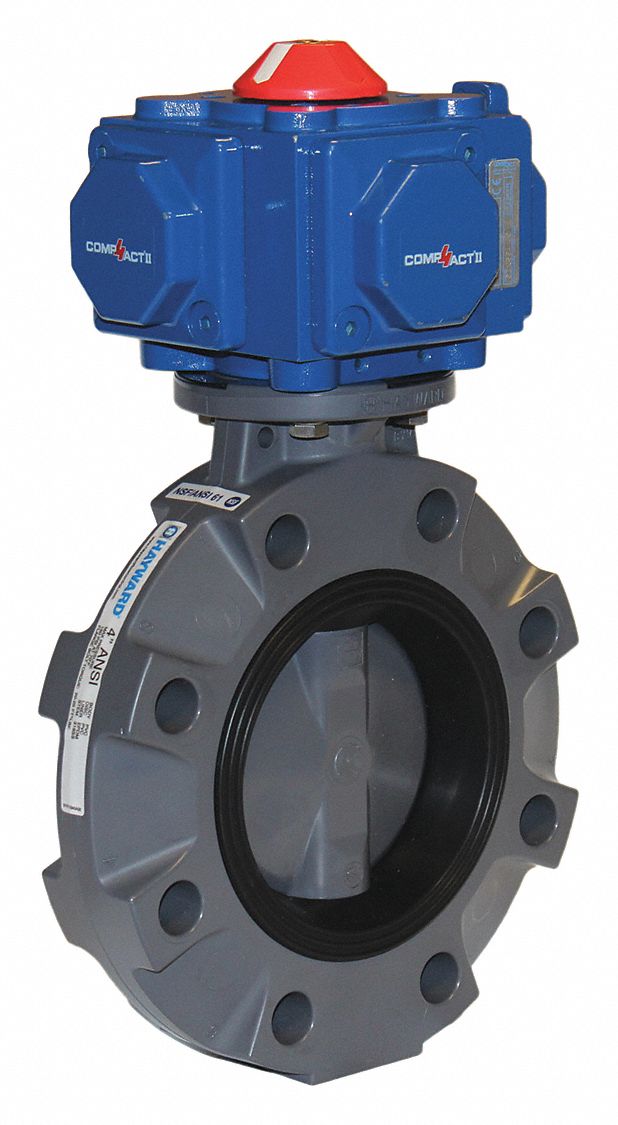

Rugged 1-pc. body with hydro-dynamic centric disc design for increased flow performance. Features 1-pc. 316 SS stem with threaded retaining gland and the over-sized liner face maximizes surface contact with flanges. A solenoid valve is required to control compressed air. This valve is ideal for use in water and wastewater treatment plants, chemical processing and handling, and in marine and corrosive environments.
| Item | Butterfly Valve |
| Action | Spring Return |
| Body Material | PVC |
| Pipe Size | 4 in |
| Connection | ANSI |
| Max. Water Pressure | 150 psi |
| Air Inlet Pressure | 80 psi |
| Number of Bolt Holes | 8 |
| Bolt Circle Dia. | 7 1/2 in |
| Lug Dia. | 3/4 in |
| Seat Material | FPM |
| Standards | ISO 5211 |
| Compliance | ASTM D1784 Cell Class 12454 |
