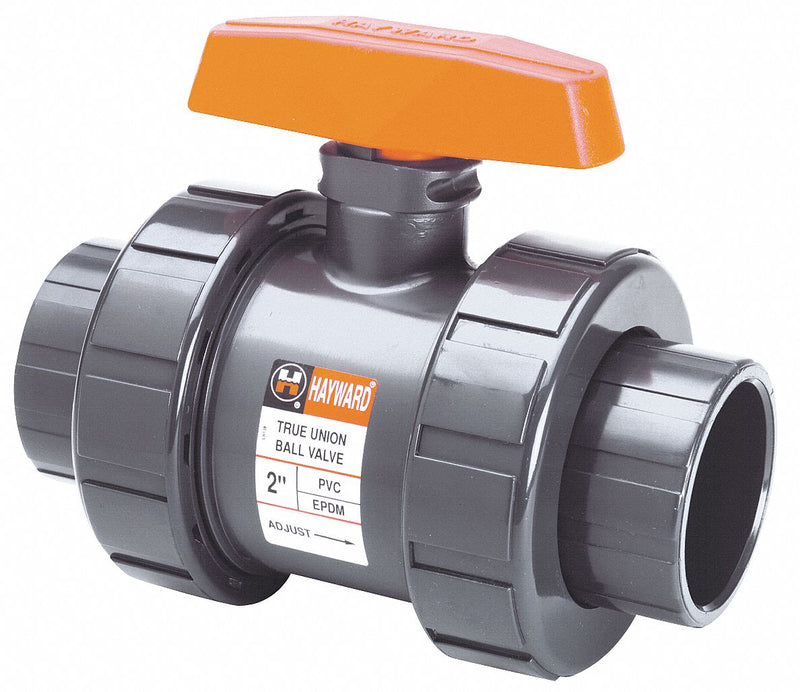

Ideal for corrosive industrial applications, this HAYWARD true union ball valve has a tough PVC body that wont rust or corrode. Model features a fine-pitch seal retainer thread that allows for accurate compensation for seat wear. The reversible seats if damaged, can be removed, turned over, and reinstalled to ease valve repair. The double O-ring stem seal can provide up to twice the leakage protection of models with only a single stem seal. Valve design allows you to attach a mounting bracket directly to the valve without the need for glued or clamped-on mounting pads.
|Body Style||Inline True Union|
|General Connection Type||Female NPT|
|Pipe Size||2 1/2 in|
|Connection Type||FNPT x FNPT|
|Max. Pressure||235 psi CWP|
|Temp. Range||34 Degrees to 140 Degrees F|
|Stem Type||Blowout Proof|
|Body Seal Material||EPDM|
|Ball Valve Product Group||Manual|
|Valve Basic Body Material||Plastic|
|Overall Length||10.68 in|
