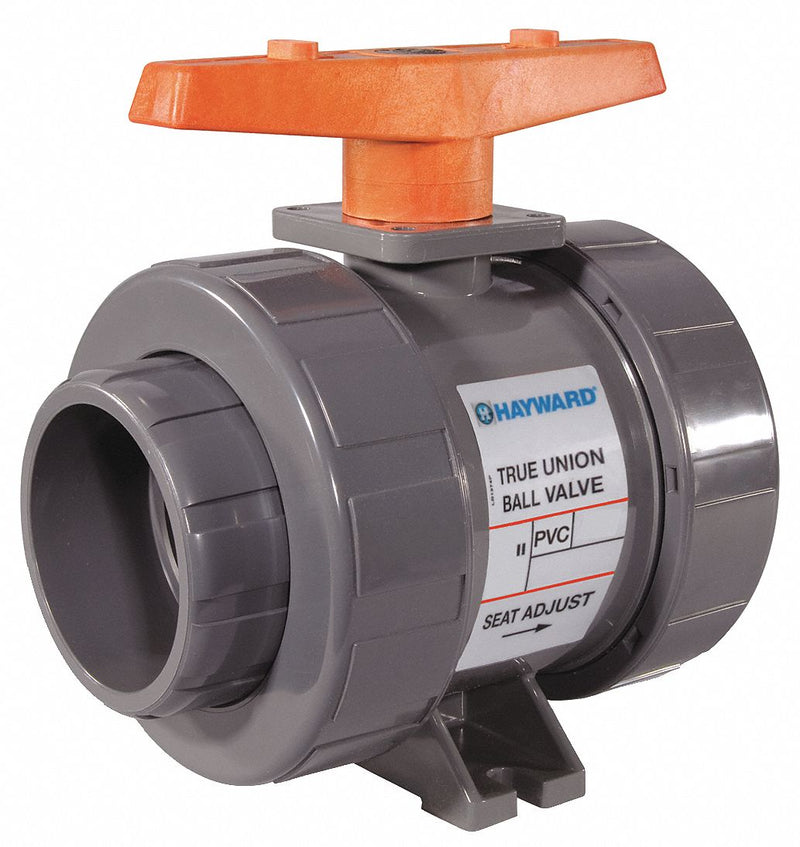

Ideal for corrosive industrial applications, this HAYWARD true union ball valve has a tough PVC body that wont rust or corrode. Model features a fine-pitch seal retainer thread that allows for accurate compensation for seat wear. The reversible seats if damaged, can be removed, turned over, and reinstalled to ease valve repair. The double O-ring stem seal can provide up to twice the leakage protection of models with only a single stem seal. Valve design allows you to attach a mounting bracket directly to the valve without the need for glued or clamped-on mounting pads.
| Item | Ball Valve |
| Body Material | PVC |
| Body Style | Inline True Union |
| General Connection Type | Female NPT |
| Valve Structure | 2-Piece |
| Pipe Size | 3 in |
| Connection Type | FNPT x FNPT |
| Port | Full |
| Max. Pressure | 235 psi CWP |
| Temp. Range | 34 Degrees to 140 Degrees F |
| Ball Material | PVC |
| Seat Material | PTFE |
| Stem Type | Blowout Proof |
| Handle Type | Tee |
| Handle Material | PVC |
| Stem Material | PVC |
| Body Seal Material | EPDM |
| Ball Valve Product Group | Manual |
| Valve Basic Body Material | Plastic |
| Standards | ASTM, NSF |
| Overall Length | 10.56 in |
