Availability : Usually Ships in 3-5 Business Days

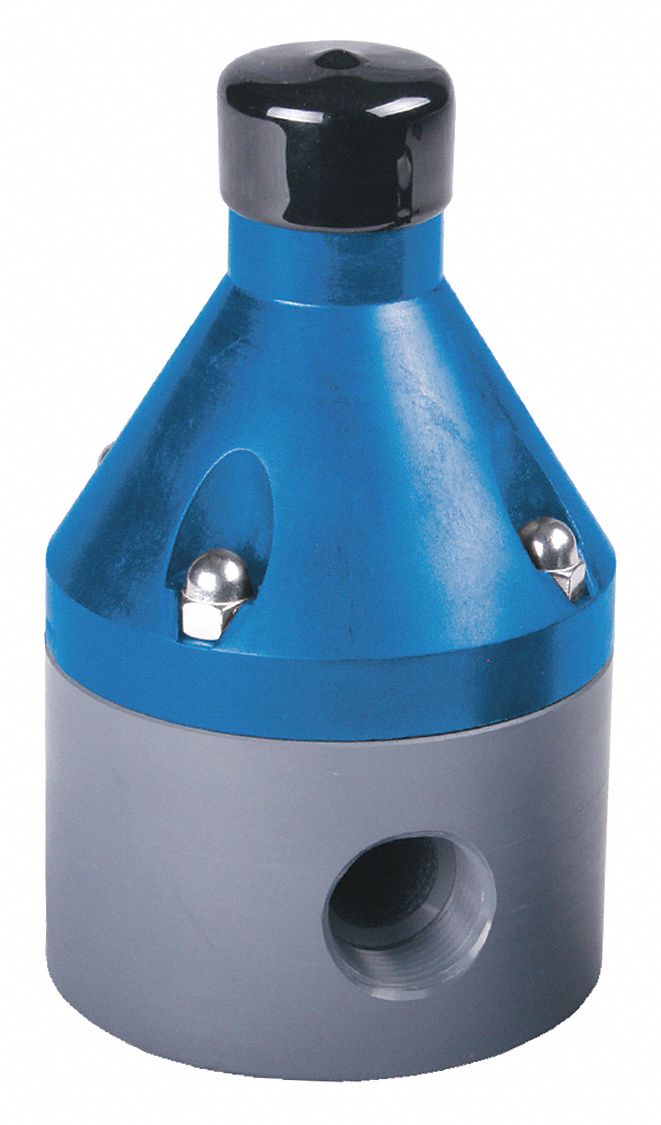

Help protect chemical feed systems from over pressure conditions with this HAYWARD pressure reducing control valve. When the preset pressure is exceeded (valve has an adjustment screw that you can adjust in the field), the diaphragm moves up and the chemical flows out of the relief port back to the chemical tank or the suction side of the pump.
|Item||Pressure Reducing Control Valve|
|Valve Type||Pressure Reducing|
|Pipe Size||3/8 in|
|Operating Pressure||150 psi|
|Max. Continuous Flow Rate||11 gpm|
|Max. Intermittent Flow Rate||3.5 gpm|
|Port Size||3/8 in x 3/8 in|
|Max. Fluid Temp.||180 Degrees F|
|Nut Material||Stainless Steel|
|Spring Material||Zinc Plated|
