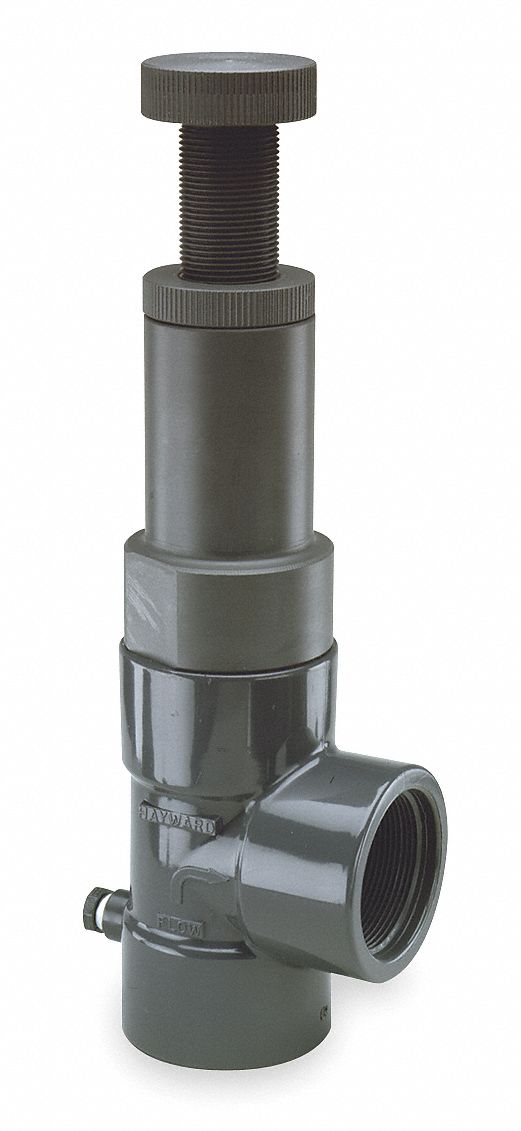

Hayward PVC Adjustable Relief Valve, FNPT Inlet Type, FNPT Outlet Type - RV1075T

HaywardSKU: C2783571
MPN : RV1075T
Weight : 1.0 lb


$610.10 $984.03

Availability : Usually Ships Within 5-7 Business Days

Adjustable Relief Valve; Body Material: PVC; Inlet Type: FNPT; Outlet Type: FNPT; Inlet Size: 3/4 in; Outlet Size: 3/4 in; Factory Set Pressure: 25 psi; Pressure Range: 5 to 75 psi; Disc Material: PVC; Overall Height: 6 7/8 in; Overall Length: 3 1/8 in; Seat Material: FPM; Spring Material: Coated Stainless Steel; Temp. Range: 40 Degrees to 140 Degrees F; Test Lever: No

ItemAdjustable Relief Valve
Body MaterialPVC
Inlet TypeFNPT
Outlet TypeFNPT
Inlet Size3/4 in
Outlet Size3/4 in
Factory Set Pressure25 psi
Pressure Range5 to 75 psi
Disc MaterialPVC
Overall Height6 7/8 in
Overall Length3 1/8 in
Seat MaterialFPM
Spring MaterialCoated Stainless Steel
Temp. Range40 Degrees to 140 Degrees F
Test LeverNo
