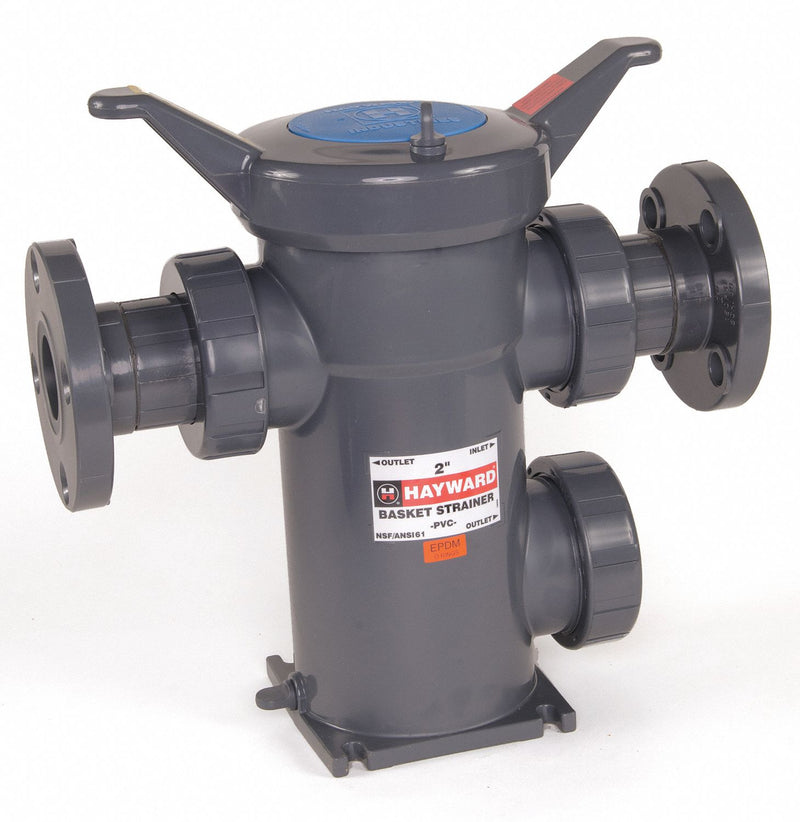

Plastic Basket Strainers, Max. pressure: 150 psi,Help remove particulates as process media flows through the perforated strainer basket. Provide broad coverage of process chemicals in applications where the line can be shut down for basket cleaning.
| Item | Simplex Strainer |
| Pipe Size | 3" |
| Connection Type | Flanged |
| Housing Material | PVC |
| Max. Pressure | 150 psi |
| Height | 22-19/64" |
| Width | 20-23/64" |
| Screen Area | 199.31 sq. in. |
| Screen Material | PVC |
| Mesh | 1/8" |
| Gasket Material | EPDM |
| Blow-off Port | 1/2" |
| Standards | NSF/ANSI STD 71 |
