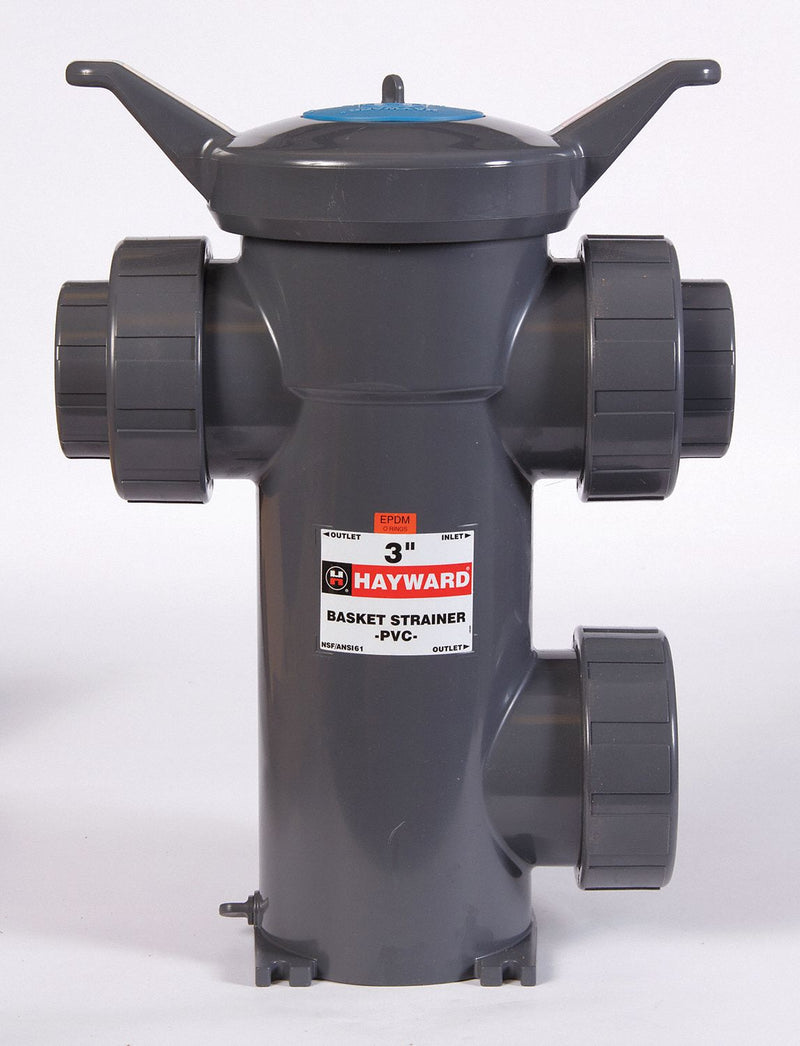

Hayward basket strainer helps remove particulates as process media flows through the perforated strainer basket, and is ideal for corrosive and sensitive media. Provides broad coverage of process chemicals in applications where the line can be shut down for basket cleaning.
| Item | Simplex Strainer |
| Pipe Size | 4" |
| Connection Type | Threaded |
| Housing Material | PVC |
| Max. Pressure | 150 psi |
| Height | 22-19/64" |
| Width | 17-17/64" |
| Screen Area | 199.31 sq. in. |
| Screen Material | PVC |
| Mesh | 1/8" |
| Gasket Material | EPDM |
| Blow-off Port | 1/2" |
| Standards | NSF/ANSI STD 72 |
WARNING: California Residents
This product and/or packaging can expose you to chemicals including Styrene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
