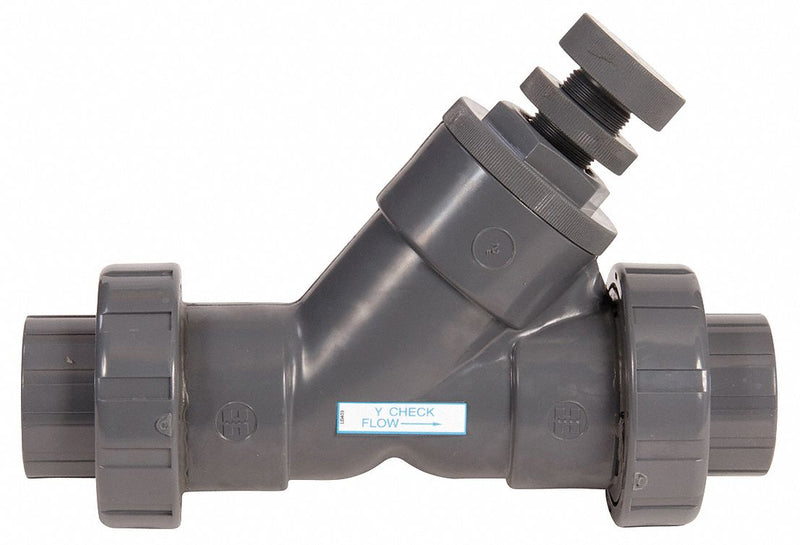

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Y Spring; Body Material - Valves: PVC; Pipe or Tube Size - Check Valves: 4 in; Connection Type - Check Valves: FNPT x FNPT; Cracking Pressure - Check Valves: 2 to 15 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: FPM; Max. Temp. - Valves: 140 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 150 psi @ 70 Degrees F; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: FPM; Spring Material - Check Valves: Stainless Steel; Flow - Valves: 240 gpm; Full Flow - Valves: Yes; Application - Valves: Process Piping; Length: 21 15/64 in; Width: 5 3/4 in; Overall Height: 14 23/64 in; Cap to Inlet Center: 10 1/16 in; Hex Size: 4 1/4 in
