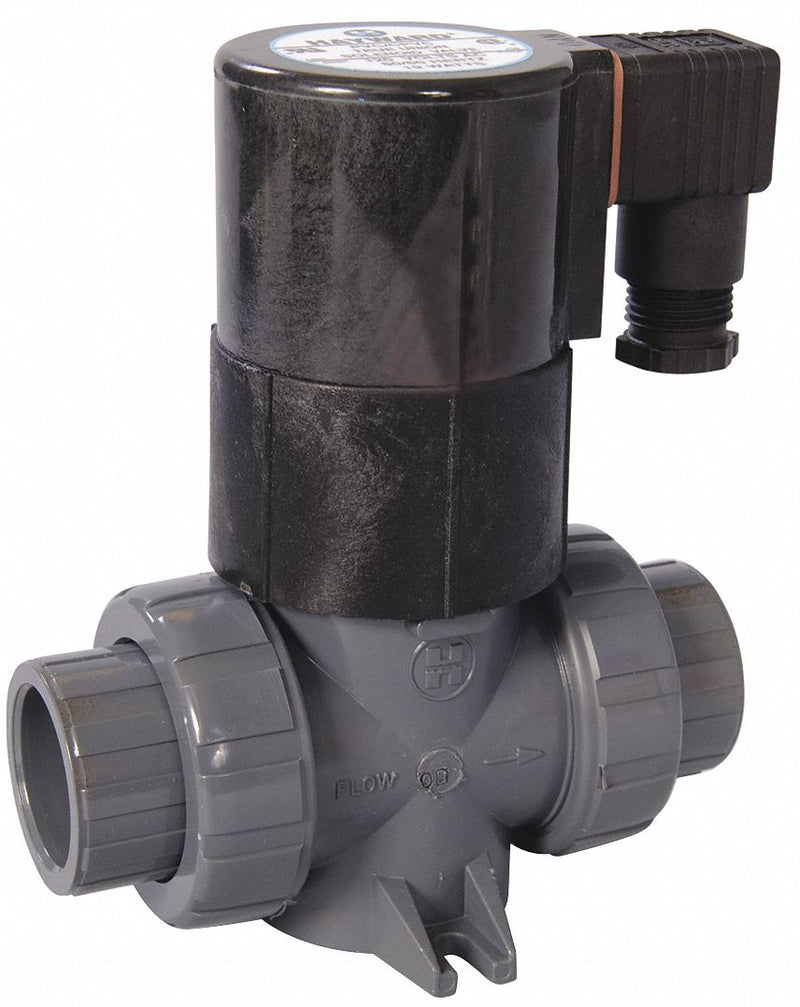

Hayward PVC Solenoid Valve, 2-Way/2-Position Valve Design, Normally Closed - SV10075STV

HaywardSKU: C2783659
MPN : SV10075STV
Weight : 4.0 lb
filler

Price:
$680.81 $830.26

Availability : Usually Ships Within 5-7 Business Days

Featuring easy-to-replace seal cartridge and plunger assemblies for quick field repair, this HAYWARD solenoid valve is designed so that no pressure differential is required for reliable operation. This heavy-duty model operates without sticking and chattering common to many solenoid valves. Corrosion-resistant coil features an innovative design that rectifies AC current to DC current resulting in lower coil operating temperatures compared to other plastic solenoid valves. Unit is not affected by downstream restrictions caused by flow meters, nozzles, or other equipment.,Note: This solenoid valve is normally closed and open when energized. It is intended for intermittent use and is not to be turned on and left on for extended periods of time.

ItemSolenoid Valve
Solenoid Valve Product GroupPlastic Solenoid Valve
Valve Ways and Positions2-Way/2-Position
Valve ConfigurationNormally Closed
Media - ValvesAcids, Bases, Salt Water, Water
Pipe Size - Valves3/4 in
Min. Operating Pressure Differential0 psi
Max. Operating Pressure Differential Light Oil120 psi
Max. Operating Pressure Differential Water120 psi
Environmental Rating - ValvesCorrosive, Indoor, Outdoor
Voltage120V AC
Coefficient of Volume3.2
Body Material - ValvesPVC
Coil Insulation ClassB
Orifice Dia.3/64 in
Safe Working Water Pressure120 psi
Hz50 to 60
OperationDirect Acting
Max. Flow Rate5 fps
Coil EnclosureWatertight
Electrical Connections1/2 in Conduit
NEMA Rating4
Overall Length5 5/16 in
Max. Fluid Temp.140 Degrees F
Overall Width3 in
Overall Height6 5/8 in
