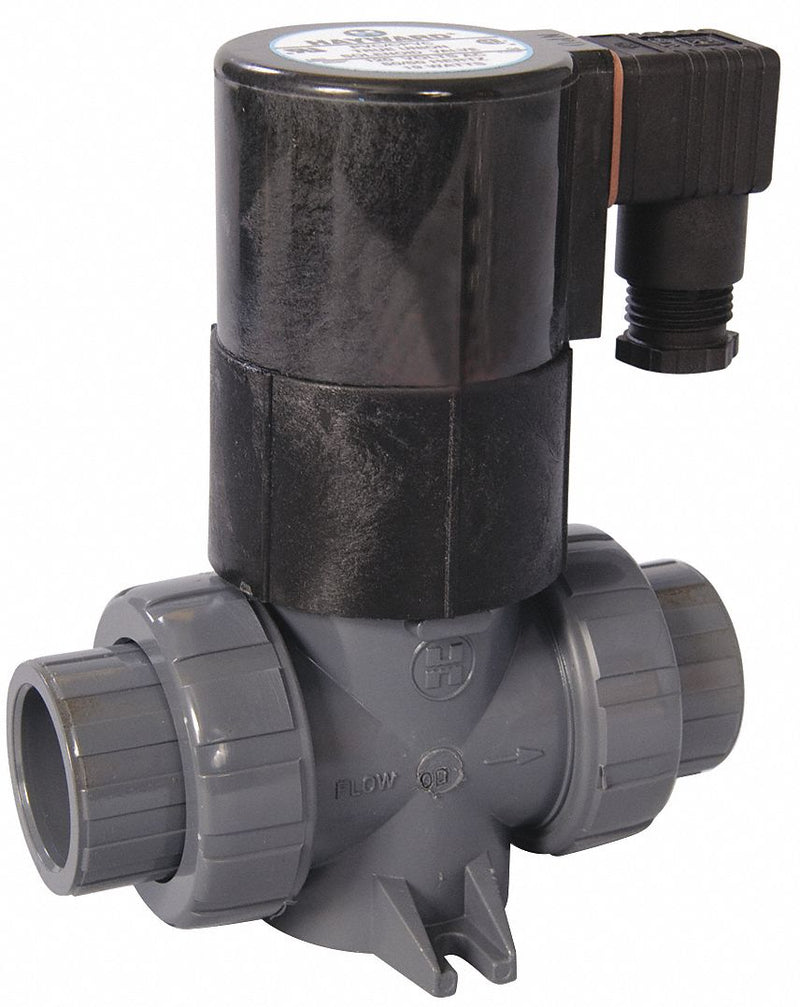

Featuring easy-to-replace seal cartridge and plunger assemblies for quick field repair, this HAYWARD solenoid valve is designed so that no pressure differential is required for reliable operation. This heavy-duty model operates without sticking and chattering common to many solenoid valves. Corrosion-resistant coil features an innovative design that rectifies AC current to DC current resulting in lower coil operating temperatures compared to other plastic solenoid valves. Unit is not affected by downstream restrictions caused by flow meters, nozzles, or other equipment.,Note: This solenoid valve is normally closed and open when energized. It is intended for intermittent use and is not to be turned on and left on for extended periods of time.
| Item | Solenoid Valve |
| Solenoid Valve Product Group | Plastic Solenoid Valve |
| Valve Ways and Positions | 2-Way/2-Position |
| Valve Configuration | Normally Closed |
| Media - Valves | Acids, Bases, Salt Water, Water |
| Pipe Size - Valves | 3/4 in |
| Min. Operating Pressure Differential | 0 psi |
| Max. Operating Pressure Differential Light Oil | 120 psi |
| Max. Operating Pressure Differential Water | 120 psi |
| Environmental Rating - Valves | Corrosive, Indoor, Outdoor |
| Voltage | 120V AC |
| Coefficient of Volume | 3.2 |
| Body Material - Valves | CPVC |
| Coil Insulation Class | B |
| Seal Material - Valves | FPM |
| Orifice Dia. | 3/64 in |
| Safe Working Water Pressure | 120 psi |
| Hz | 50 to 60 |
| Operation | Direct Acting |
| Max. Flow Rate | 5 fps |
| Coil Enclosure | Watertight |
| Electrical Connections | 1/2 in Conduit |
| NEMA Rating | 4 |
| Overall Length | 5 5/16 in |
| Max. Fluid Temp. | 190 Degrees F |
| Overall Width | 3 in |
| Overall Height | 6 5/8 in |
