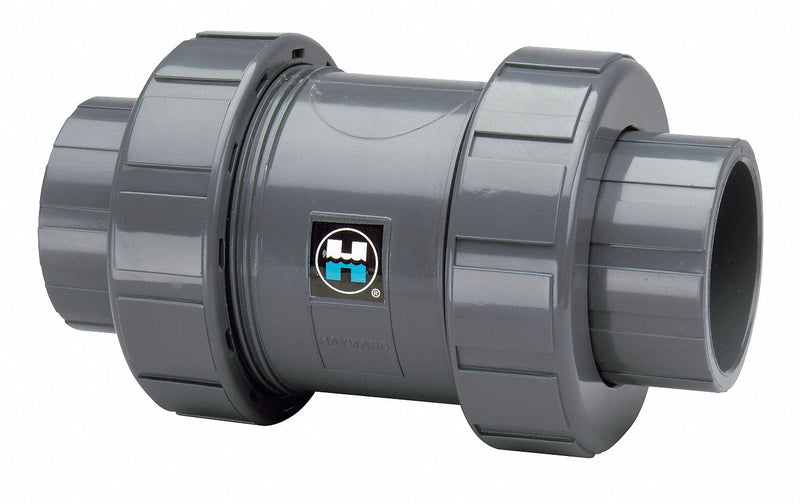

Hayward Check Valve, 4 in, Single, Inline True Union, PVC, Flange x Flange - TC1400FE

HaywardSKU: C2783581
MPN : TC1400FE
Weight : 24.6 lb
filler

Price:
$1,109.62 $1,353.20

Availability : Usually Ships in 3-5 Business Days

Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline True Union
Body Material - ValvesPVC
Pipe or Tube Size - Check Valves4 in
Connection Type - Check ValvesFlange x Flange
Cracking Pressure - Check Valves3 psi
Mounting Orientation - Check ValvesVertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves140 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves150 psi @ 70 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesEPDM
Flow - Valves275 gpm
Full Flow - ValvesYes
Application - ValvesProcess Piping
Length17 in
Width9 in
Overall Height9 in
StandardsNSF 61
