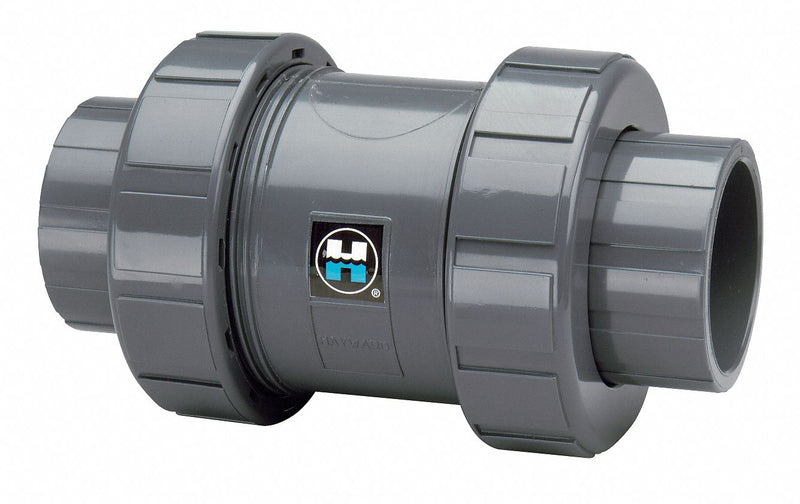

Hayward Check Valve, 4 in, Single, Inline True Union, PVC, FNPT x FNPT - TC1400T

HaywardSKU: C2783605
MPN : TC1400T
Weight : 17.94 lb
filler

Price:
$651.65 $794.70

Availability : Usually Ships in 3-5 Business Days

Designed to help prevent the reversal of flow in piping systems where backflow could cause damage to filters, pumps, or process equipment. This HAYWARD check valve operates without the need for any adjustments or settings, and features an innovative square-cut elastomer seat to seal at low back pressures. The true union design eases valve removal from piping systems without having to break down the pipe connections.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline True Union
Body Material - ValvesPVC
Pipe or Tube Size - Check Valves4 in
Connection Type - Check ValvesFNPT x FNPT
Cracking Pressure - Check Valves3 psi
Mounting Orientation - Check ValvesVertical
Seal Material - Check ValvesViton
Max. Temp. - Valves140 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves150 psi @ 70 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesViton
Flow - Valves275 gpm
Full Flow - ValvesYes
Application - ValvesProcess Piping
Length13 in
Width8 9/16 in
Overall Height8 9/16 in
StandardsNSF 61
