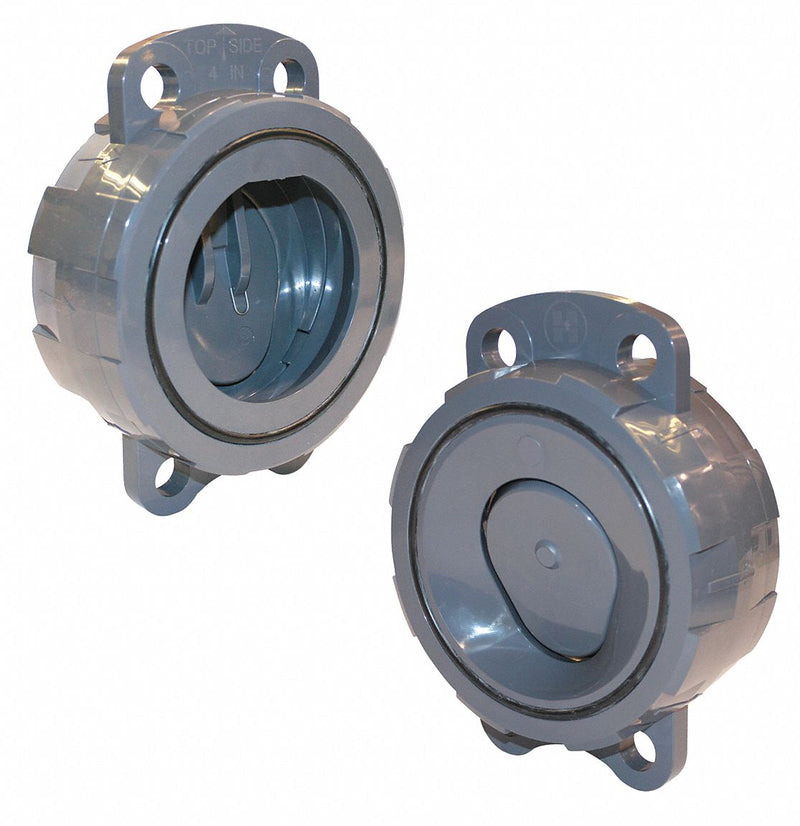

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Wafer; Body Material - Valves: PVC; Pipe or Tube Size - Check Valves: 2 1/2 in; Connection Type - Check Valves: Flange x Flange; Cracking Pressure - Check Valves: 1 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: EPDM; Max. Temp. - Valves: 140 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 150 psi @ 70 Degrees F; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: EPDM; Flow - Valves: 155 gpm; Full Flow - Valves: Yes; Application - Valves: General Purpose; Length: 2 19/64 in; Width: 4 3/4 in; Overall Height: 6 in
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Wafer |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 2 1/2 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 140 Degrees F |
| Min. Temp. - Valves | 40 Degrees F |
| Max. Water Pressure - Valves | 150 psi @ 70 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | EPDM |
| Flow - Valves | 155 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 2 19/64 in |
| Width | 4 3/4 in |
| Overall Height | 6 in |
