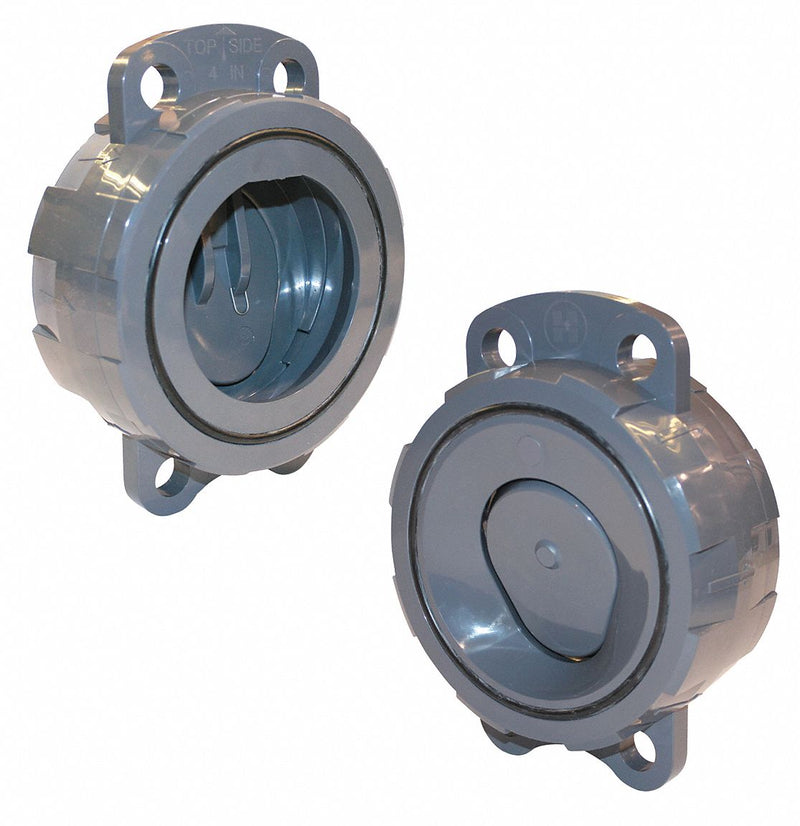

Hayward Check Valve, 2 in, Single, Inline Wafer, PVC, Flange x Flange - WCV1200V

HaywardSKU: C1910750
MPN : WCV1200V
Weight : 1.28 lb
filler

Price:
$296.46 $361.54

Availability : Usually Ships in 1-3 Business Days

PVC Wafer Check Valves, Max. temp.: 140F Max. pressure: 150 psi at 70F,Innovative disc seat design allows for high flow rates and excellent sealing properties. Thermoplastic construction eliminates the need for spacers or specialty flanges. Horizontal or vertical mount. Suitable for use in corrosive environments, and in water and wastewater treatment and chemical processing applications.

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Wafer
Body Material - ValvesPVC
Pipe or Tube Size - Check Valves2 in
Connection Type - Check ValvesFlange x Flange
Cracking Pressure - Check Valves1 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesFPM
Max. Temp. - Valves140 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves150 psi @ 70 Degrees F
Max. Steam Pressure - ValvesNot Rated
Seat Material - Check ValvesFPM
Spring Material - Check Valves316 Stainless Steel
Flow - Valves90 gpm
Full Flow - ValvesYes
Application - ValvesGeneral Purpose
Length1 51/64 in
Width4 in
Overall Height5 1/4 in
