Availability : Usually Ships in 5 Business Days

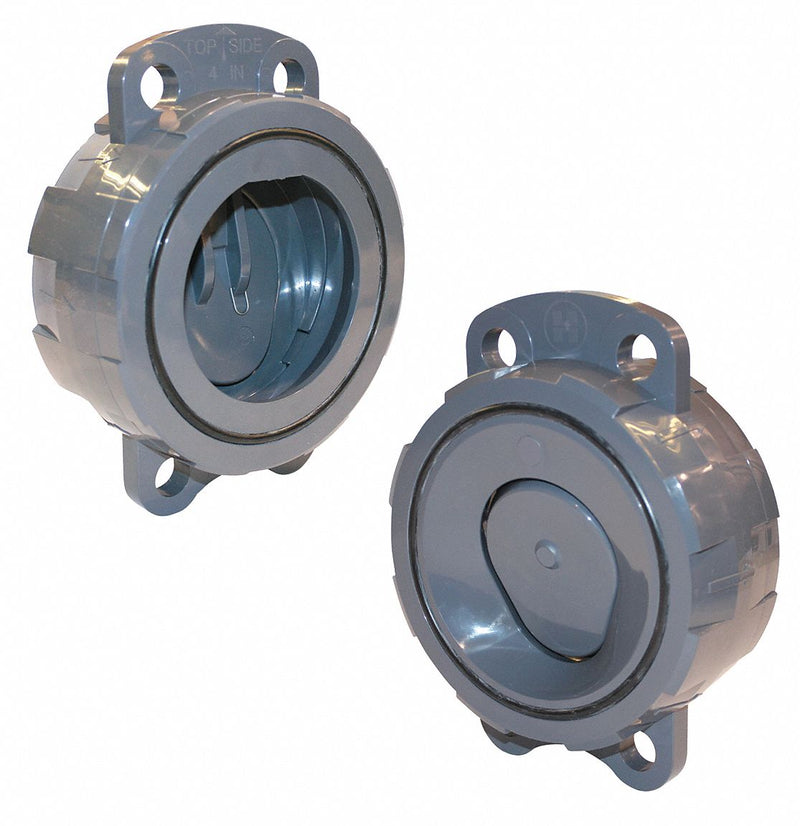

PVC Wafer Check Valves, Max. temp.: 140F Max. pressure: 150 psi at 70F,Innovative disc seat design allows for high flow rates and excellent sealing properties. Thermoplastic construction eliminates the need for spacers or specialty flanges. Horizontal or vertical mount. Suitable for use in corrosive environments, and in water and wastewater treatment and chemical processing applications.
Item - Check Valves | Check Valve |
Flow Design | Single |
Mechanism and Body Design | Inline Wafer |
Body Material - Valves | PVC |
Pipe or Tube Size - Check Valves | 3 in |
Connection Type - Check Valves | Flange x Flange |
Cracking Pressure - Check Valves | 1 psi |
Mounting Orientation - Check Valves | Horizontal, Vertical |
Seal Material - Check Valves | FPM |
Max. Temp. - Valves | 140 Degrees F |
Min. Temp. - Valves | 40 Degrees F |
Max. Water Pressure - Valves | 150 psi @ 70 Degrees F |
Max. Steam Pressure - Valves | Not Rated |
Seat Material - Check Valves | FPM |
Spring Material - Check Valves | 316 Stainless Steel |
Flow - Valves | 220 gpm |
Full Flow - Valves | Yes |
Application - Valves | General Purpose |
Length | 2 13/32 in |
Width | 5 1/4 in |
Overall Height | 6 1/2 in |
