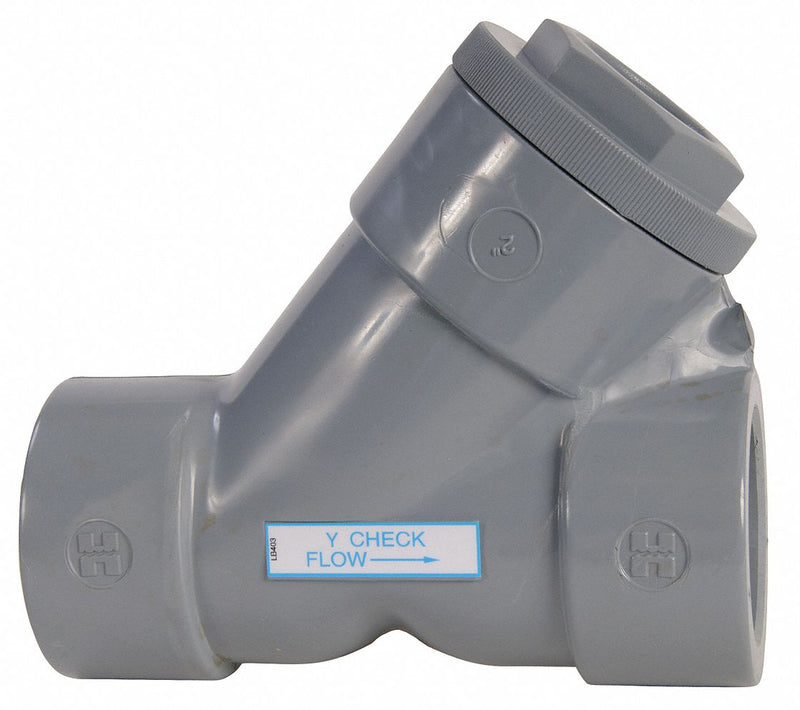

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Y; Body Material - Valves: CPVC; Pipe or Tube Size - Check Valves: 2 in; Connection Type - Check Valves: Flange x Flange; Cracking Pressure - Check Valves: 1 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: EPDM; Max. Temp. - Valves: 190 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 150 psi @ 70 Degrees F; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: EPDM; Flow - Valves: 65 gpm; Full Flow - Valves: Yes; Application - Valves: General Purpose; Length: 11 1/32 in; Width: 3 3/8 in; Overall Height: 7 5/64 in; Hex Size: 2 3/8 in
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Y |
| Body Material - Valves | CPVC |
| Pipe or Tube Size - Check Valves | 2 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 190 Degrees F |
| Min. Temp. - Valves | 40 Degrees F |
| Max. Water Pressure - Valves | 150 psi @ 70 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | EPDM |
| Flow - Valves | 65 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 11 1/32 in |
| Width | 3 3/8 in |
| Overall Height | 7 5/64 in |
| Hex Size | 2 3/8 in |
