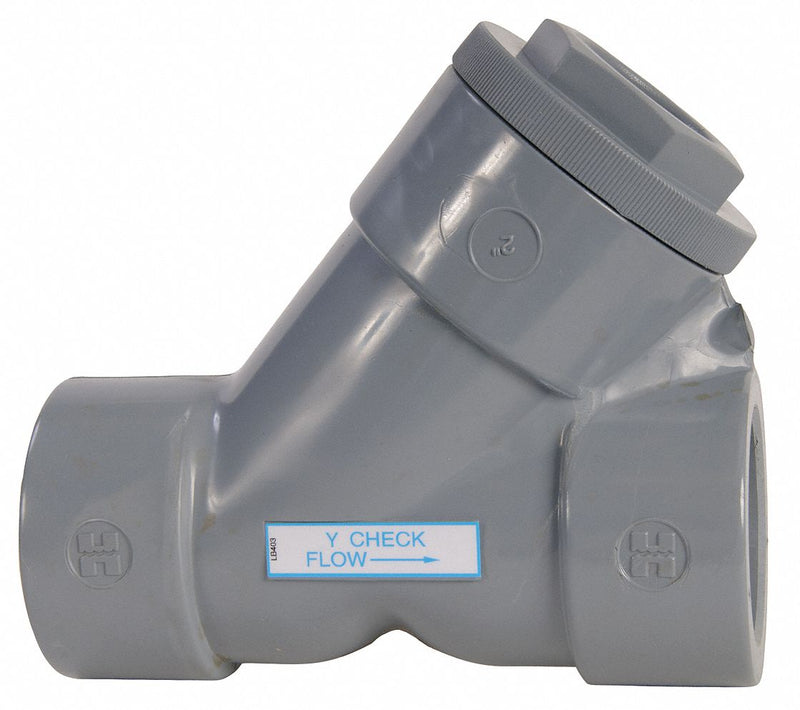

Hayward Check Valve, 1/2 in, Single, Y, PVC, Flange x Flange - YC10050FE
Availability : Usually Ships in 10 Business Days
Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Y; Body Material - Valves: PVC; Pipe or Tube Size - Check Valves: 1/2 in; Connection Type - Check Valves: Flange x Flange; Cracking Pressure - Check Valves: 1 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: EPDM; Max. Temp. - Valves: 140 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 150 psi @ 70 Degrees F; Max. Steam Pressure - Valves: Not Rated; Seat Material - Check Valves: EPDM; Flow - Valves: 0.8 gpm; Full Flow - Valves: Yes; Application - Valves: General Purpose; Length: 5 23/64 in; Width: 1 3/8 in; Overall Height: 2 15/16 in; Cap to Inlet Center: 2 5/16 in; Hex Size: 1 in
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Y |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 1/2 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 140 Degrees F |
| Min. Temp. - Valves | 40 Degrees F |
| Max. Water Pressure - Valves | 150 psi @ 70 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | EPDM |
| Flow - Valves | 0.8 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | General Purpose |
| Length | 5 23/64 in |
| Width | 1 3/8 in |
| Overall Height | 2 15/16 in |
| Cap to Inlet Center | 2 5/16 in |
| Hex Size | 1 in |
