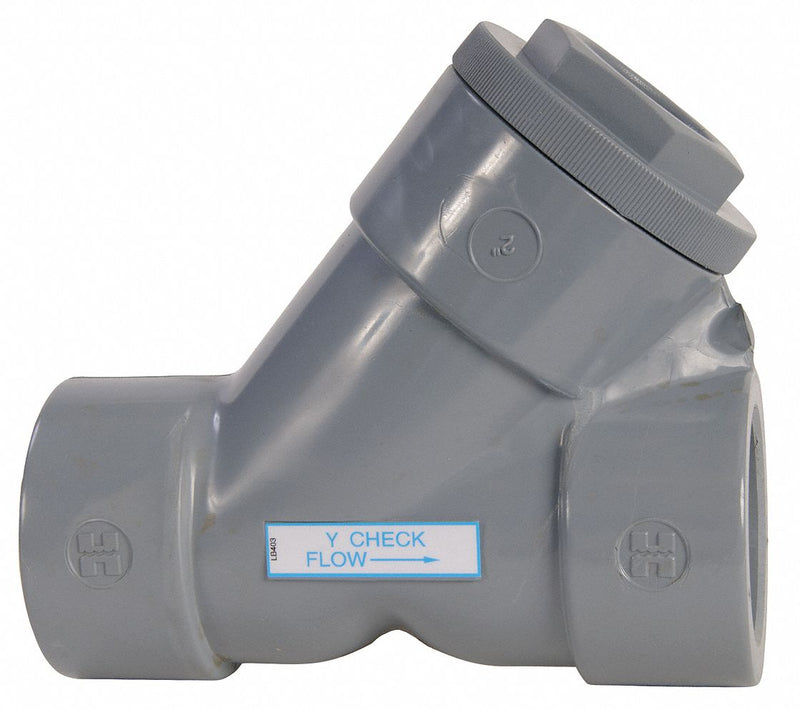

PVC Y Check Valves, Max. pressure: 150 psi at 70F Max temp.: 140F,Feature FPM seat and seal material that resists most chemicals and organic compounds. Valves can be mounted horizontally or vertically. Assembled with silicone-free lubricant.
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Y |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 4 in |
| Connection Type - Check Valves | Socket x Socket |
| Cracking Pressure - Check Valves | 1 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | FPM |
| Max. Temp. - Valves | 140 Degrees F |
| Min. Temp. - Valves | 40 Degrees F |
| Max. Water Pressure - Valves | 150 psi @ 70 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Seat Material - Check Valves | FPM |
| Flow - Valves | 240 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | Process Piping |
| Length | 12 13/16 in |
| Width | 5 3/4 in |
| Overall Height | 11 3/4 in |
| Cap to Inlet Center | 8 15/16 in |
| Hex Size | 4 1/4 in |
