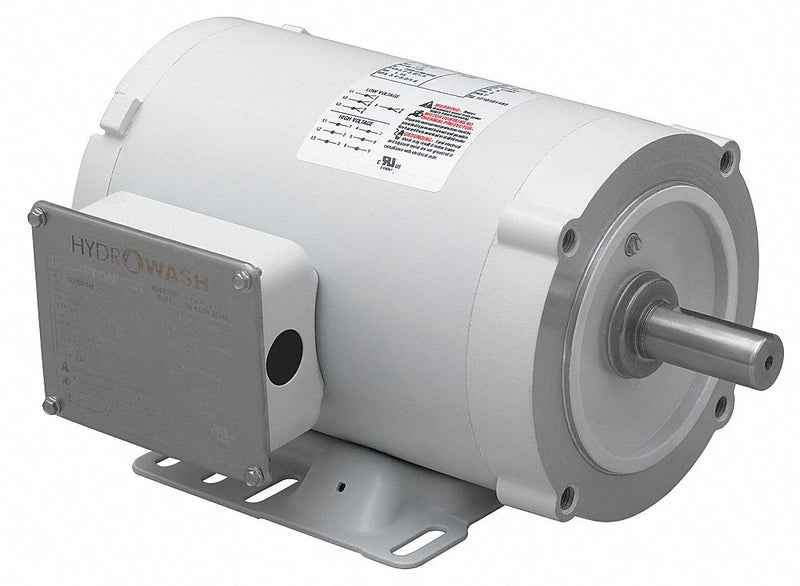

Hydrowash 1/2 HP Washdown Motor,3-Phase,1725 Nameplate RPM,230/460 Voltage,Frame 56C - 1321007145

HydrowashSKU: C1528554
MPN : 1321007145
Weight : 25.0 lb
filler

Price:
$813.08 $991.56

Availability : Usually Ships in 7-10 Business Days

3-Phase HydroWash Washdown Motors,Service factor: 1.15 Insulation: Class F Max. ambient: 40C Thermal protection: none Bearings: double-sealed ball Rotation: CW/CCW Duty: continuous,Feature double-sealed ball bearings with triple protection, potted and welded conduit box, oil- and water-resistant breather vent, VPI windings, waterproof lead splice kit, and corrosion-resistant white epoxy paint. Ideal for use in applications requiring frequent high pressure clean-up with chemical sanitizers in high humidity areas. Suitable for use in auto and vehicle washing equipment, beverage and food processing, and in pharmaceutical and medical device manufacturing.,UL Recognized and RoHS compliant.

ItemWashdown Motor
Motor ApplicationWashdown
Motor Design3-Phase
Motor Enclosure DesignTotally Enclosed Nonventilated
HP1/2
Nameplate RPM1725
Frame56C
NEMA DesignB
Motor Shaft RotationCW/CCW
Voltage230/460
Full Load Amps1.6/.8
Phase3
Hz60
Motor Mounting TypeFace/Base
Motor BearingsBall
Motor Frame MaterialEpoxy Coated Rolled Steel
Motor Thermal ProtectionNone
Motor Service Factor1.15
Max. Ambient Temp.40 Degrees C
Shaft Dia.5/8 in
Shaft Length2 1/16 in
Motor Shaft DesignKeyed
Length Less Shaft8 3/16
Ins. ClassF
RPM Range1701-1800
DutyContinuous
Shaft Material303 Stainless Steel
Conduit BoxEpoxy Painted Steel
Drain PlugsBreather Vent
EndshieldsEpoxy-Painted Cast Iron
Nominal Efficiency80.9 %
ApplicationWet Environments
IncludesSplice Kit
StandardsUL Recognized
Voltage Compatibility208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460
