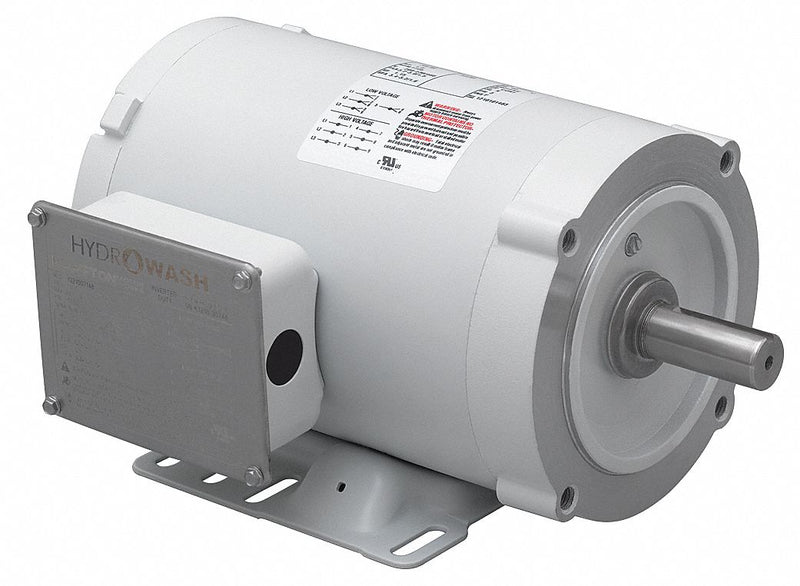

3-Phase HydroWash Washdown Motors,Service factor: 1.15 Insulation: Class F Max. ambient: 40C Thermal protection: none Bearings: double-sealed ball Rotation: CW/CCW Duty: continuous,Feature double-sealed ball bearings with triple protection, potted and welded conduit box, oil- and water-resistant breather vent, VPI windings, waterproof lead splice kit, and corrosion-resistant white epoxy paint. Ideal for use in applications requiring frequent high pressure clean-up with chemical sanitizers in high humidity areas. Suitable for use in auto and vehicle washing equipment, beverage and food processing, and in pharmaceutical and medical device manufacturing.,UL Recognized and RoHS compliant.
| Item | Washdown Motor |
| Motor Application | Washdown |
| Motor Design | 3-Phase |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| HP | 2 |
| Nameplate RPM | 1725 |
| Frame | 56C |
| NEMA Design | B |
| Motor Shaft Rotation | CW/CCW |
| Voltage | 230/460 |
| Full Load Amps | 5.6/2.8 |
| Phase | 3 |
| Hz | 60 |
| Motor Mounting Type | Face/Base |
| Motor Bearings | Ball |
| Motor Frame Material | Epoxy Coated Rolled Steel |
| Motor Thermal Protection | None |
| Motor Service Factor | 1.15 |
| Max. Ambient Temp. | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 2 in |
| Motor Shaft Design | Keyed |
| Length Less Shaft | 12 1/2 |
| Ins. Class | F |
| RPM Range | 1701-1800 |
| Duty | Continuous |
| Shaft Material | 303 Stainless Steel |
| Conduit Box | Epoxy Painted Steel |
| Drain Plugs | Breather Vent |
| Endshields | Epoxy-Painted Cast Iron |
| Motor Efficiency Group | NEMA Premium Efficient |
| Nominal Efficiency | 86.4 % |
| CC Number | CC029A |
| Application | Wet Environments |
| Includes | Splice Kit |
| Standards | UL Recognized |
| Voltage Compatibility | 208, 208-220/440, 208-230, 208-230/460, 208-240, 220-230/460, 220/460, 230, 230/460, 240, 460 |
