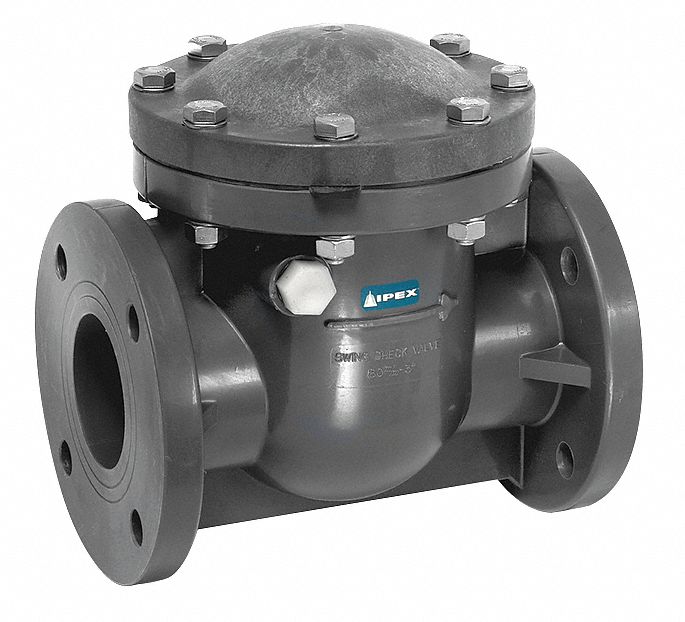

Top Brand Check Valve, 3 in, Single, Inline Swing, PVC, Flange x Flange - SCOV110

Top BrandSKU: C1910792
MPN : SCOV110
Weight : 13.21 lb
filler

Price:
$1,451.42 $1,770.02

Availability : Usually Ships in 5-7 Business Days

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Swing; Body Material - Valves: PVC; Pipe or Tube Size - Check Valves: 3 in; Connection Type - Check Valves: Flange x Flange; Cracking Pressure - Check Valves: 8.5 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: EPDM; Max. Temp. - Valves: 140 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 100 psi @ 73 Degrees F; Max. Steam Pressure - Valves: Not Rated; Flow - Valves: 920 gpm; Full Flow - Valves: Yes; Application - Valves: Process Piping; Length: 10 1/4 in; Width: 8 1/16 in; Overall Height: 10 1/2 in; Cap to Inlet Center: 6 23/32 in; Hex Size: 5/8 in; Standards: ASTM D1784 and ANSI B16.5

Item - Check ValvesCheck Valve
Flow DesignSingle
Mechanism and Body DesignInline Swing
Body Material - ValvesPVC
Pipe or Tube Size - Check Valves3 in
Connection Type - Check ValvesFlange x Flange
Cracking Pressure - Check Valves8.5 psi
Mounting Orientation - Check ValvesHorizontal, Vertical
Seal Material - Check ValvesEPDM
Max. Temp. - Valves140 Degrees F
Min. Temp. - Valves40 Degrees F
Max. Water Pressure - Valves100 psi @ 73 Degrees F
Max. Steam Pressure - ValvesNot Rated
Flow - Valves920 gpm
Full Flow - ValvesYes
Application - ValvesProcess Piping
Length10 1/4 in
Width8 1/16 in
Overall Height10 1/2 in
Cap to Inlet Center6 23/32 in
Hex Size5/8 in
StandardsASTM D1784 and ANSI B16.5
