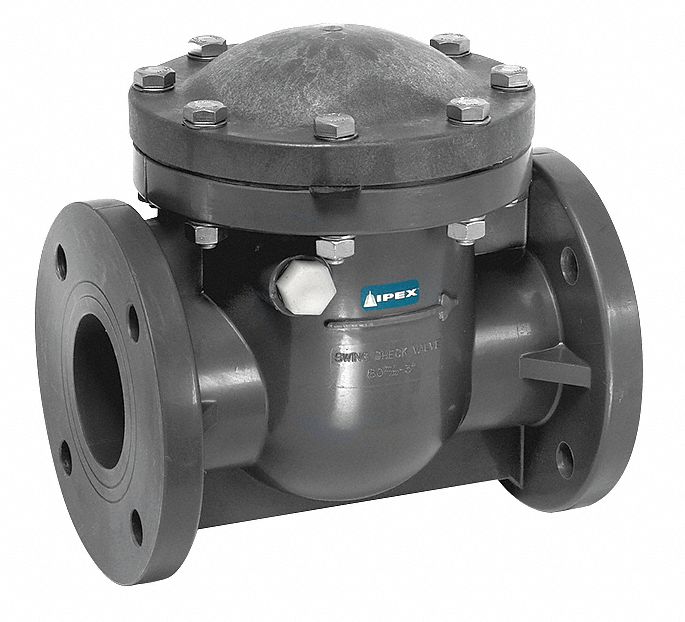

Item - Check Valves: Check Valve; Flow Design: Single; Mechanism and Body Design: Inline Swing; Body Material - Valves: PVC; Pipe or Tube Size - Check Valves: 6 in; Connection Type - Check Valves: Flange x Flange; Cracking Pressure - Check Valves: 12.5 psi; Mounting Orientation - Check Valves: Horizontal, Vertical; Seal Material - Check Valves: EPDM; Max. Temp. - Valves: 140 Degrees F; Min. Temp. - Valves: 40 Degrees F; Max. Water Pressure - Valves: 70 psi @ 73 Degrees F; Max. Steam Pressure - Valves: Not Rated; Flow - Valves: 3,450 gpm; Full Flow - Valves: Yes; Application - Valves: Process Piping; Length: 15 3/4 in; Width: 14 9/16 in; Overall Height: 15 5/16 in; Cap to Inlet Center: 10 9/16 in; Hex Size: 3/4 in; Standards: ASTM D1784 and ANSI B16.5
| Item - Check Valves | Check Valve |
| Flow Design | Single |
| Mechanism and Body Design | Inline Swing |
| Body Material - Valves | PVC |
| Pipe or Tube Size - Check Valves | 6 in |
| Connection Type - Check Valves | Flange x Flange |
| Cracking Pressure - Check Valves | 12.5 psi |
| Mounting Orientation - Check Valves | Horizontal, Vertical |
| Seal Material - Check Valves | EPDM |
| Max. Temp. - Valves | 140 Degrees F |
| Min. Temp. - Valves | 40 Degrees F |
| Max. Water Pressure - Valves | 70 psi @ 73 Degrees F |
| Max. Steam Pressure - Valves | Not Rated |
| Flow - Valves | 3,450 gpm |
| Full Flow - Valves | Yes |
| Application - Valves | Process Piping |
| Length | 15 3/4 in |
| Width | 14 9/16 in |
| Overall Height | 15 5/16 in |
| Cap to Inlet Center | 10 9/16 in |
| Hex Size | 3/4 in |
| Standards | ASTM D1784 and ANSI B16.5 |
