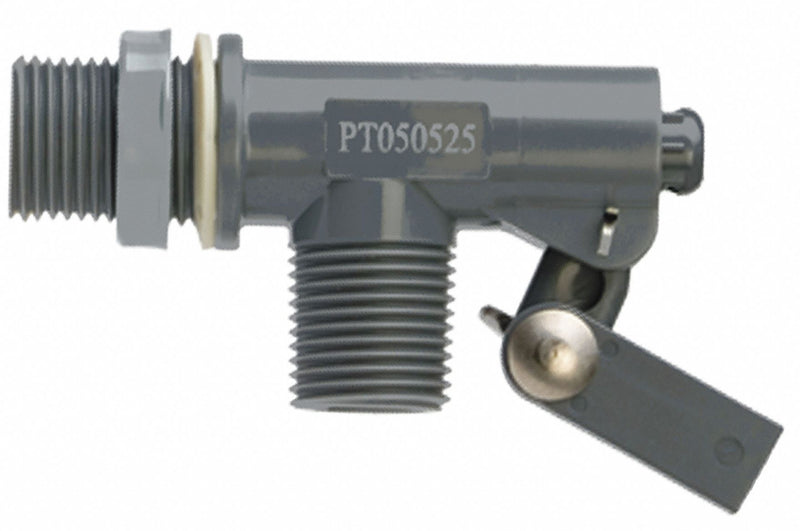

Featuring no diaphragm to clog, this KERICK float valve with threaded outlet is NSF-grade PVC construction with 18-8 stainless steel hardware that resists corrosion. Model has extended threads on the inlet side of the valve for mounting through a tank wall and it comes complete with a sealing washer and jam nut. Float and rod sold separately.
| Item | Float Valve with Threaded Outlet |
| Mounting | Bulkhead |
| Size | 1/2 in |
| Connection Type | MNPT |
| Rod Thread | 1/4 in -20 |
| Body Material | PVC |
| Valve Flow - Pressure (1) | 60 psi |
| Valve Flow - Flow (1) | 12.5 gpm |
| Valve Flow - Pressure (2) | 40 psi |
| Valve Flow - Flow (2) | 60 gpm |
| Max. Pressure | 100 psi |
| Features | 0.25 in Orifice |
| Compliance | NSF/ANSI 61, Standard 169 |
| Valve Material | PVC |
