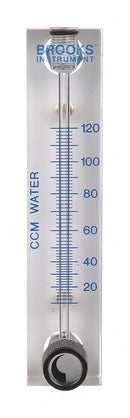

Key Instruments 10 to 120 ccm Variable Area Flowmeter - 2520A4L56SVVT
filler
Availability : Usually Ships in 7-10 Business Days
| Item | Mechanical Flowmeter |
| Flowmeter Product Group | Mechanical Flowmeter |
| For Pipe Size | 1/8 in to 1 in |
| Connection Size | 1/8 in |
| Connection Type | FNPT |
| Fluid Temp. Range | 40 Degrees to 150 Degrees F |
| Wetted Materials | Clear Acrylic, Stainless Steel, Viton |
| Max. Pressure | 100 psi |
| Flow Range | 10 to 120 ccm |
| Flow Material | Water |
| Type | Variable Area |
| Width | 1 3/8 in |
| Height | 6 1/2 in |
| Housing Material | Acrylic |
| Fitting | Stainless Steel |
| Accuracy (%) | +/-3 |
| Center-Center Fitting Size | 5 1/2 |
| Center-Center Insert Size | 3 1/2 in |
| Insert | 10-32 Threaded Brass |
| O-Ring | Viton |
| Depth | 1 1/8 in |
| Application | Chromatography Systems, Desalinization Equipment, For Measuring Liquid or Gas Flows in Air Sampling Equipment, Gas Analyzers, Medical Systems, Photo Equipment, Water Treatment and Distribution and in Aquaculture System |
| Includes | Valves |
