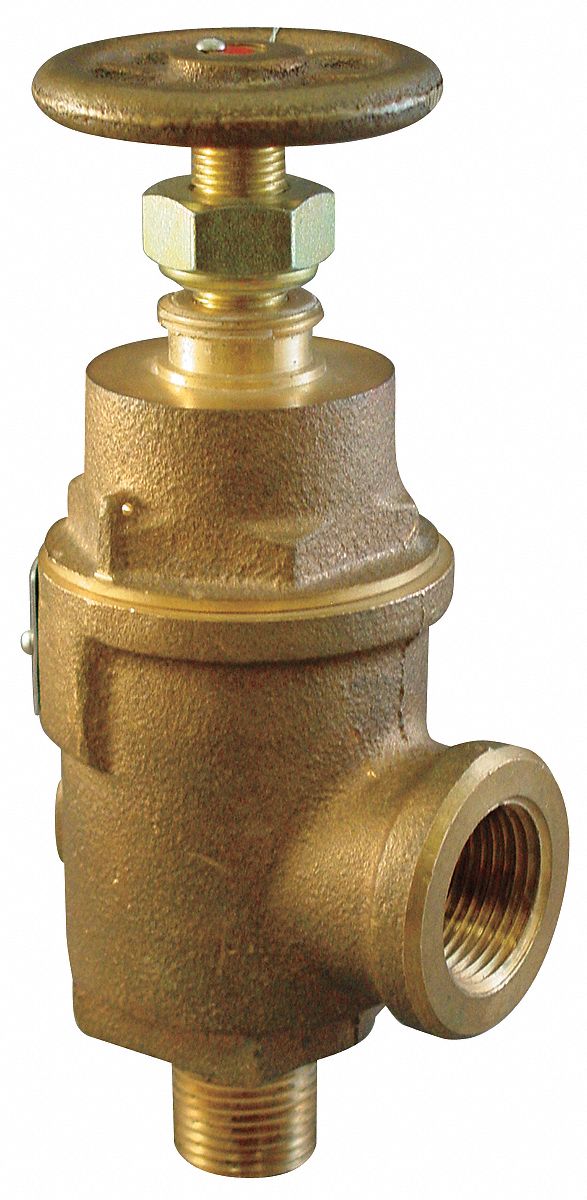

Kunkle Bronze Adjustable Relief Valve, FNPT Inlet Type, MNPT Outlet Type - 0019-E12-MG0225
filler
Availability : Usually Ships in 50 Business Days
Liquid Relief Valves—Model 19, Pressure range: 1 to 300 psi Temp. range: -60 to 406F,A handwheel allows for easier adjustments. Inlet and outlet connections allow easier inspection and servicing without disconnecting valve from line. Bronze body with stainless steel spring and bronze disc. MNPT x FNPT connections. For pressure relief, liquid relief, continuous bypass relief, and overprotection for pumps, tanks, pipelines, and hydraulic systems.
| Item | Adjustable Relief Valve |
| Body Material | Bronze |
| Inlet Type | FNPT |
| Outlet Type | MNPT |
| Inlet Size | 1 in |
| Outlet Size | 1 in |
| Factory Set Pressure | 225 psi |
| Disc Material | Bronze |
| Overall Height | 7 1/8 in |
| Application | Liquids |
| Overall Length | 3 1/8 in |
| Spring Material | 316 Stainless Steel |
| Temp. Range | -60 Degrees to 406 Degrees F |
| Test Lever | No |
