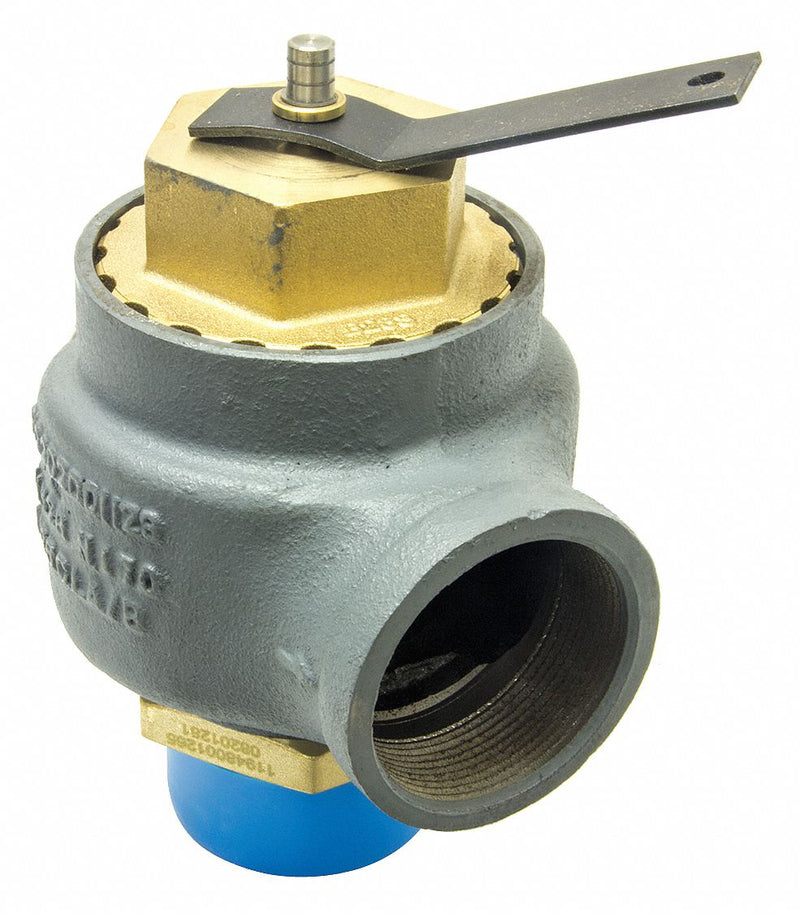

Kunkle Cast Iron Safety Relief Valve, FNPT Inlet Type, FNPT Outlet Type - 0930-J01-GC-15
filler
Availability : Usually Ships in 80 Business Days
Features top guiding seal and positive condensate drainage for extended service life.
| Item | Safety Relief Valve |
| Body Material | Cast Iron |
| Inlet Type | FNPT |
| Outlet Type | FNPT |
| Inlet Size | 2 1/2 in |
| Outlet Size | 2 1/2 in |
| Factory Set Pressure | 15 psi |
| Steam Capacity (Lb./Hr.) | 4,501 |
| Disc Material | Bronze |
| Overall Height | 8 1/4 in |
| Application | Steam |
| Overall Length | 3 1/2 in |
| Seat Material | Brass |
| Spring Material | Steel |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Test Lever | Yes |
| Compliance | Section IV Steam |
| Standards | ASME Code Section IV |
