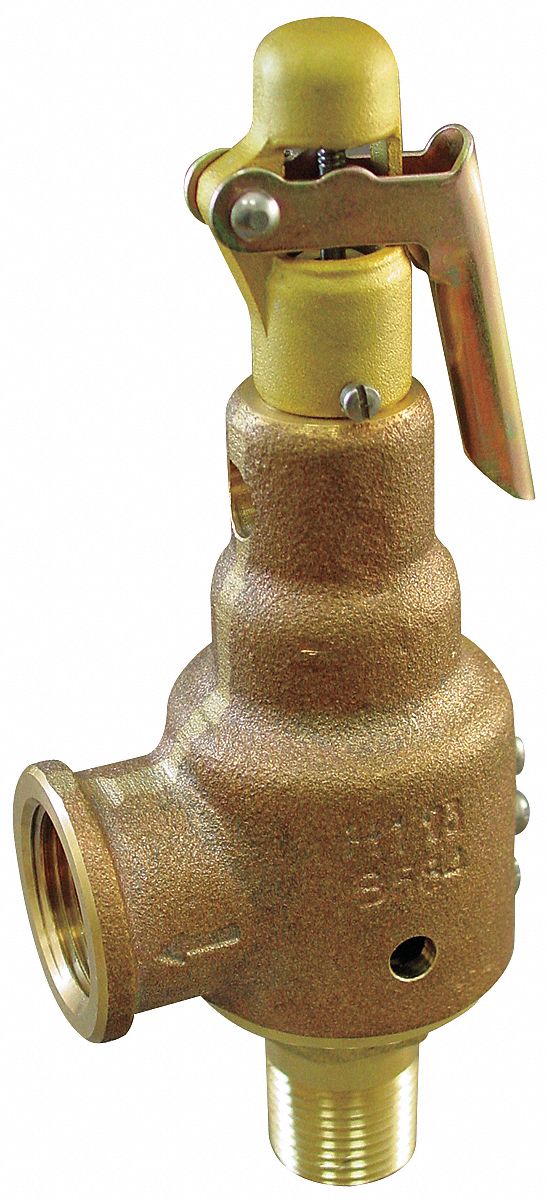

Kunkle Bronze Safety Relief Valve, MNPT Inlet Type, FNPT Outlet Type - 6010EDE01-AM0150
filler
Availability : Usually Ships in 50 Business Days
This PENTAIR KUNKLE VALVE safety relief valve is factory preset and sealed to help prevent tampering, and features a pivot between the disc and spring to help correct misalignment. Not adjustable.
| Item | Safety Relief Valve |
| Body Material | Bronze |
| Inlet Type | MNPT |
| Outlet Type | FNPT |
| Inlet Size | 3/4 in |
| Outlet Size | 1 in |
| Factory Set Pressure | 150 psi |
| Disc Material | B21 Alloy 485 |
| Overall Height | 7 1/2 in |
| Application | Pressure Reducing Stations etc, Steam Boiler and Generators |
| Overall Length | 3 1/2 in |
| Seat Material | EPR |
| Spring Material | Stainless Steel |
| Temp. Range | -60 Degrees to 406 Degrees F |
| Test Lever | Yes |
| Standards | ASME Section 1, ASTM A-313 TY 631, National Board Certified, Steam |
