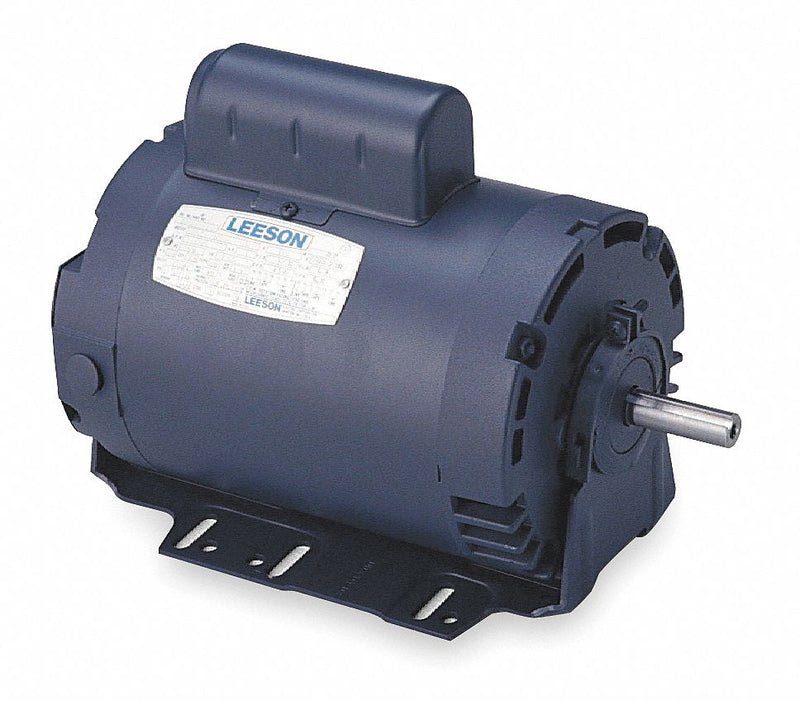

50 Hz Motor; Motor Application: General Application; Motor Design: Capacitor-Start; Motor Enclosure Design: Open Dripproof; HP: 1; No. of Speeds: 1; Nameplate RPM: 2850; Voltage: 110/220; Hz: 50; Phase: 1; Full Load Amps: 13.2/6.6; Frame: 56H; Motor Mounting Type: Cradle Base; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: B; Motor Service Factor: 1.25; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 5/8 in; Shaft Length: 1 7/8 in; Length Less Shaft: 10 in; RPM Range: 1801-3000; Voltage Compatibility: 110/220 50 Hz, 220 50 Hz
| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 1 |
| No. of Speeds | 1 |
| Nameplate RPM | 2850 |
| Voltage | 110/220 |
| Hz | 50 |
| Phase | 1 |
| Full Load Amps | 13.2/6.6 |
| Frame | 56H |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | B |
| Motor Service Factor | 1.25 |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 10 in |
| RPM Range | 1801-3000 |
| Voltage Compatibility | 110/220 50 Hz, 220 50 Hz |
