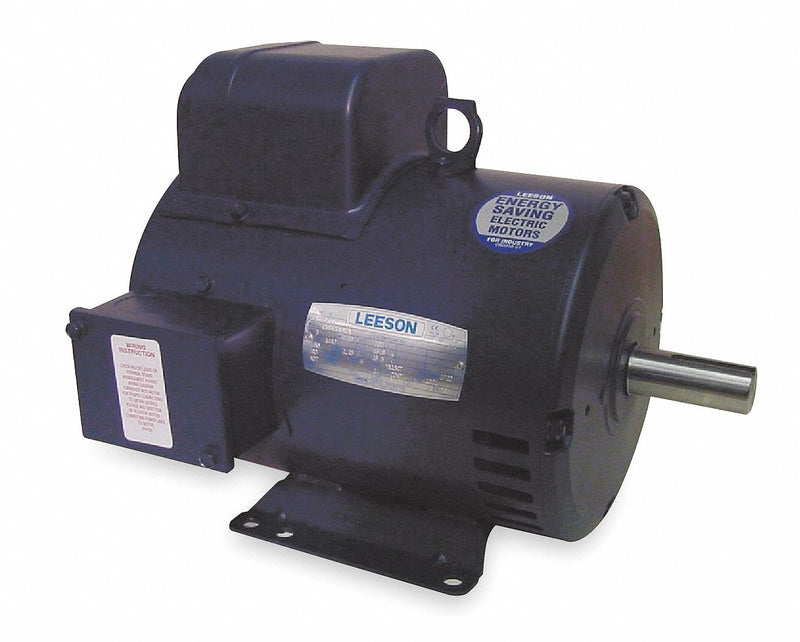

Capacitor-start motors are designed to save energy by providing high starting torque using a normal starting current. Centrifugal switch is designed specifically for 50 Hz service.
| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Type | Capacitor-Start |
| Enclosure | Open Dripproof |
| HP | 2 |
| Number of Speeds | 1 |
| Nameplate RPM | 1440 |
| Voltage | 220 |
| Hz | 50 |
| Phase | 1 |
| Full Load Amps | 11.8 |
| Frame | 182T |
| Mounting | Base |
| Thermal Protection | None |
| Insulation Class | F |
| Service Factor | 1.15 |
| Bearings | Ball |
| Rotation | CW/CCW |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1-1/8" |
| Shaft Length | 2-3/4" |
| Length Less Shaft | 11" |
| RPM Range | 1401-1500 |
| UNSPSC | 26101602 |
