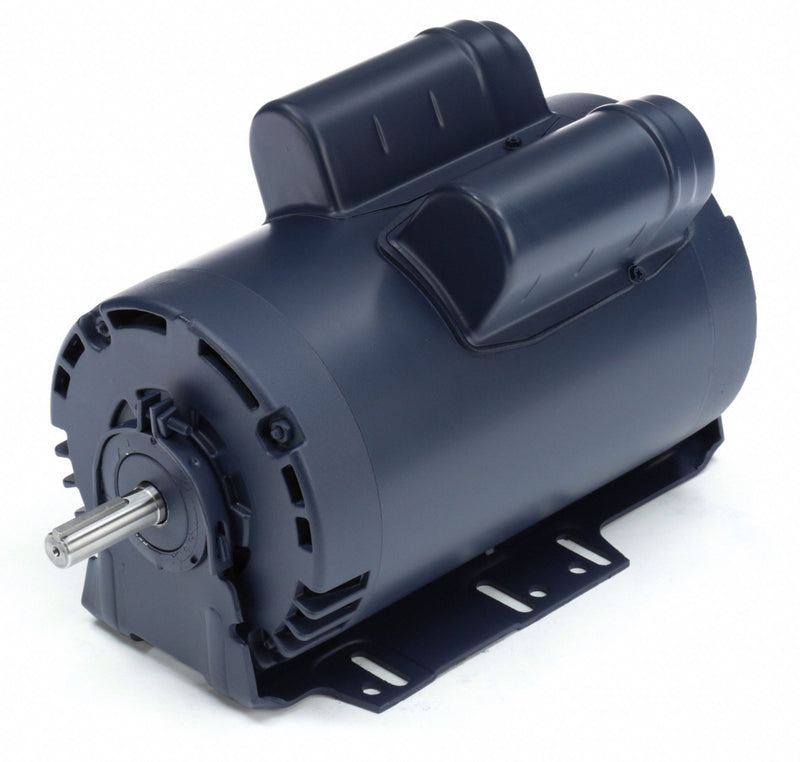

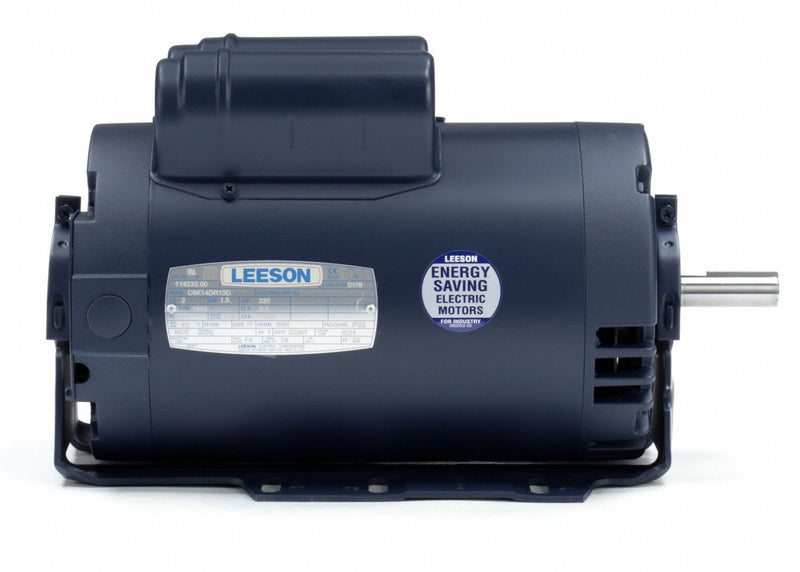

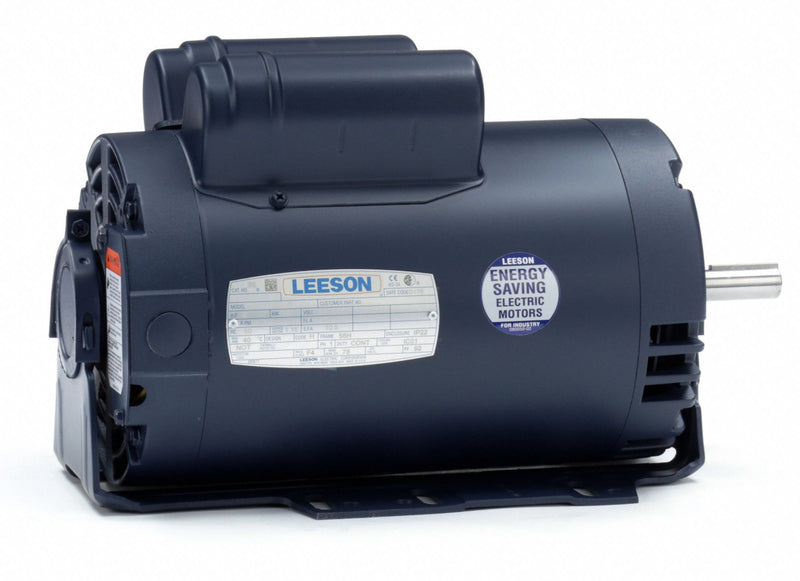

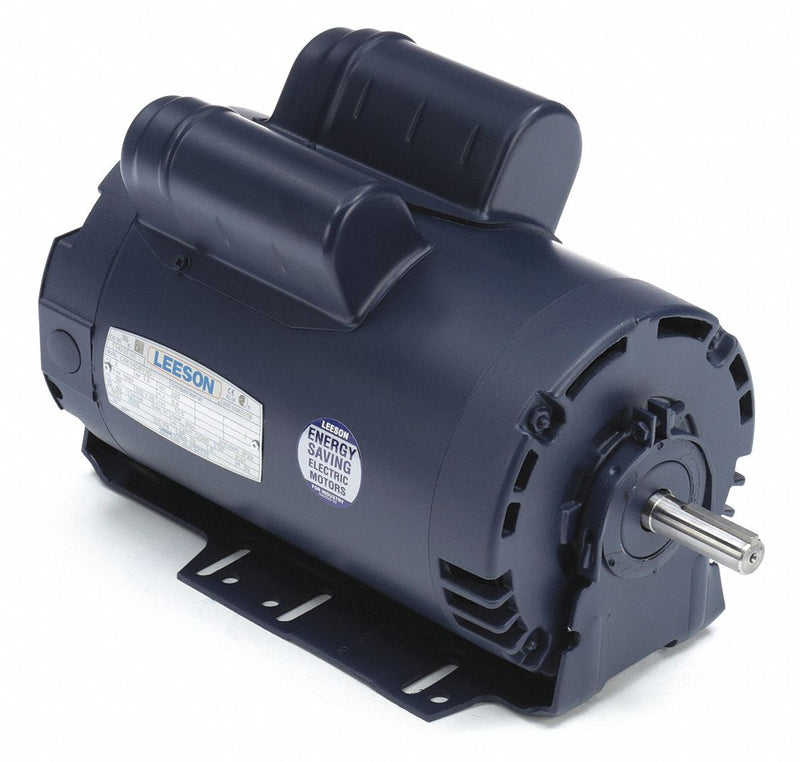

Capacitor-start motors are designed to save energy by providing high starting torque using a normal starting current. Centrifugal switch is designed specifically for 50 Hz service.
| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Design | Capacitor-Start |
| Motor Enclosure Design | Open Dripproof |
| HP | 2 |
| No. of Speeds | 1 |
| Nameplate RPM | 1440 |
| Voltage | 220 |
| Hz | 50 |
| Phase | 1 |
| Full Load Amps | 9.6 |
| Frame | 56H |
| Motor Mounting Type | Cradle Base |
| Motor Mounting Position | All Angle |
| Motor Thermal Protection | None |
| Ins. Class | F |
| Motor Service Factor | 1.15 |
| Motor Bearings | Ball |
| Motor Shaft Rotation | CW/CCW |
| Motor Shaft Design | Keyed |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 5/8 in |
| Shaft Length | 1 7/8 in |
| Length Less Shaft | 12 in |
| RPM Range | 1401-1500 |
| Voltage Compatibility | 220 50 Hz |
