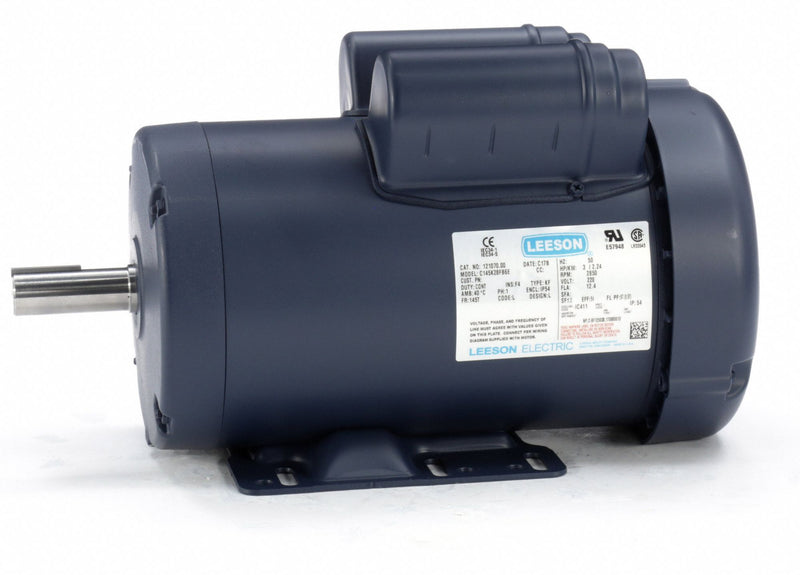

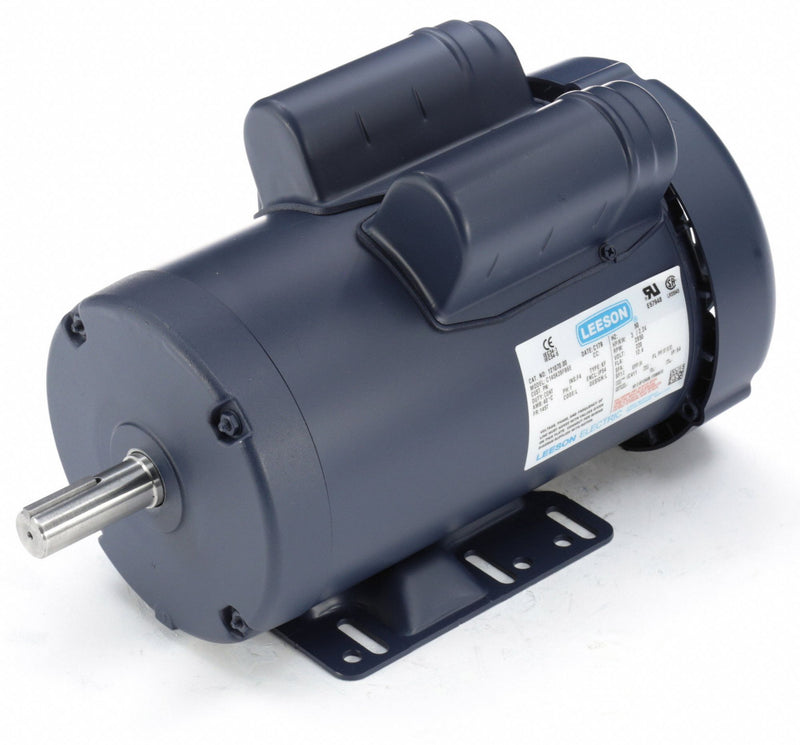

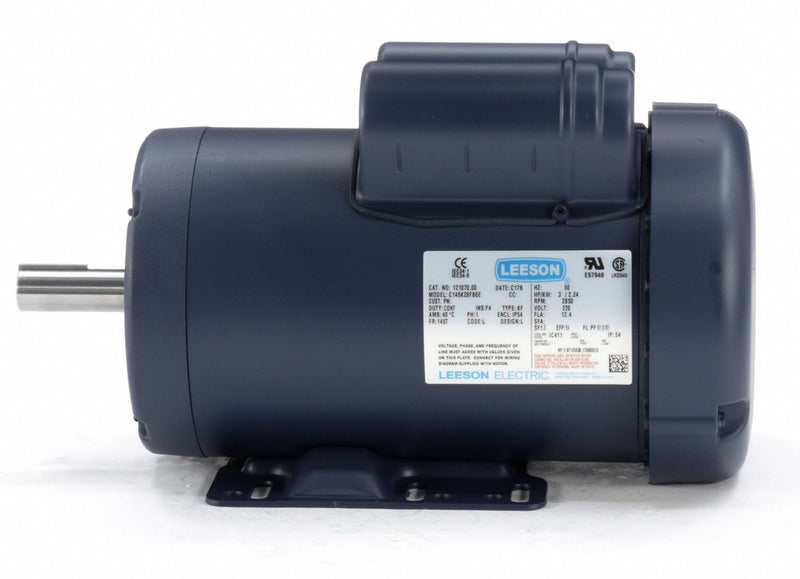

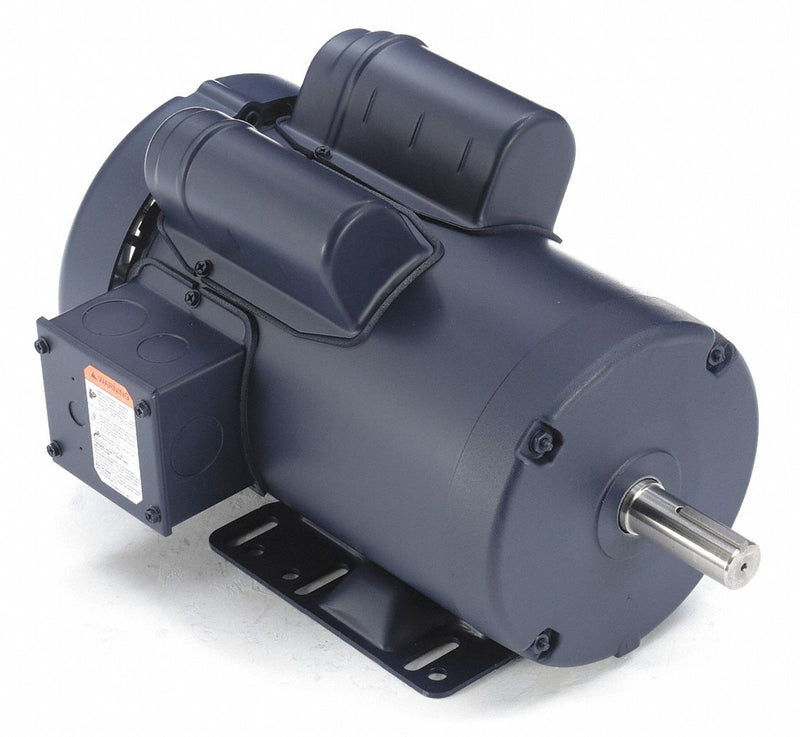

Leeson 3 HP 50 Hz Motor,Capacitor-Start,2850 Nameplate RPM,220 Voltage,Frame 145T - 121070

LeesonSKU: C1560860
MPN : 121070
Weight : 51.4 lb


$1,288.59 $1,571.45

Availability : Usually Ships in 1-3 Business Days

50 Hz Motor; Motor Application: General Application; Motor Design: Capacitor-Start; Motor Enclosure Design: Totally Enclosed Fan-Cooled; HP: 3; No. of Speeds: 1; Nameplate RPM: 2850; Voltage: 220; Hz: 50; Phase: 1; Full Load Amps: 12.4; Frame: 145T; Motor Mounting Type: Rigid Base; Motor Mounting Position: All Angle; Motor Thermal Protection: None; Ins. Class: F; Motor Service Factor: 1; Motor Bearings: Ball; Motor Shaft Rotation: CW/CCW; Motor Shaft Design: Keyed; Ambient Temperature: 40 Degrees C; Shaft Dia.: 7/8 in; Shaft Length: 2 1/4 in; Length Less Shaft: 12 1/4 in; RPM Range: 1801-3000; Voltage Compatibility: 220 50 Hz

Item50 Hz Motor
Motor ApplicationGeneral Application
Motor DesignCapacitor-Start
Motor Enclosure DesignTotally Enclosed Fan-Cooled
No. of Speeds1
Nameplate RPM2850
Full Load Amps12.4
Motor Mounting TypeRigid Base
Motor Mounting PositionAll Angle
Motor Thermal ProtectionNone
Ins. ClassF
Motor Service Factor1
Motor BearingsBall
Motor Shaft RotationCW/CCW
Motor Shaft DesignKeyed
Ambient Temperature40 Degrees C
Shaft Dia.7/8 in
Shaft Length2 1/4 in
Length Less Shaft12 1/4 in
RPM Range1801-3000
Voltage Compatibility220 50 Hz
