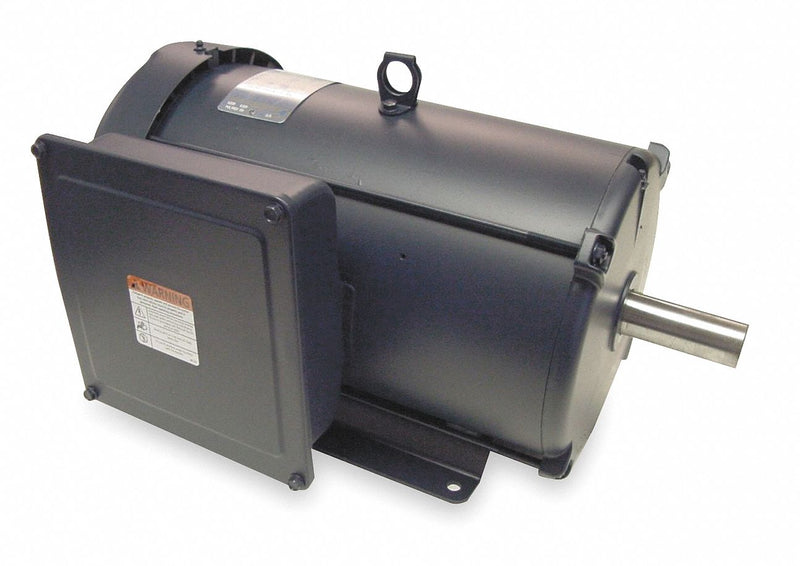

| Item | 50 Hz Motor |
| Motor Application | General Application |
| Motor Type | Capacitor-Start |
| Enclosure | Totally Enclosed Fan-Cooled |
| HP | 5 |
| Number of Speeds | 1 |
| Nameplate RPM | 1440 |
| Voltage | 220 |
| Hz | 50 |
| Phase | 1 |
| Full Load Amps | 24.5 |
| Frame | 213TZ |
| Mounting | Base |
| Thermal Protection | Manual |
| Insulation Class | F |
| Service Factor | 1.00 |
| Bearings | Ball |
| Rotation | CW/CCW |
| Ambient Temperature | 40 Degrees C |
| Shaft Dia. | 1-3/8" |
| Shaft Length | 3-3/8" |
| Length Less Shaft | 15-1/2" |
| RPM Range | 1401-1500 |
| UNSPSC | 26101602 |
